Connector End View (C1551E) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1551E POWERTRAIN CONTROL MODULE (PCM) 12C508 #N/A Not Available

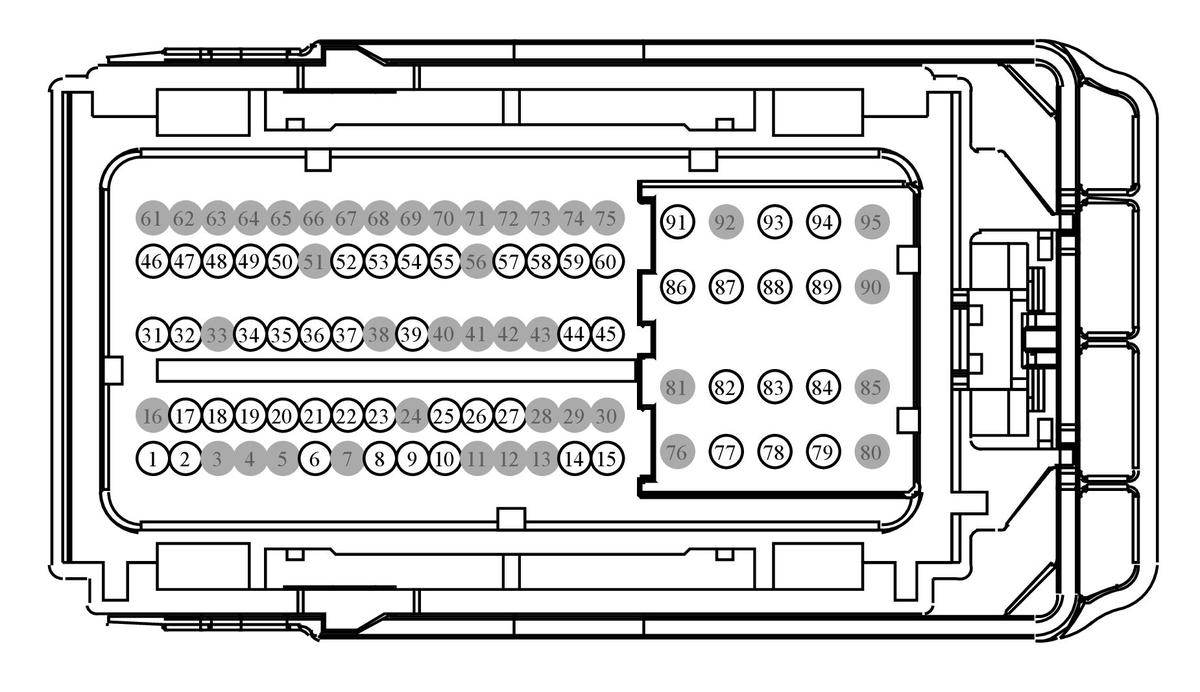

GFDWR88915Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BA DU2Z-14474-CA 0.64
BU5T-14474-AA DU2Z-14474-CA 0.64
BU5T-14474-UA DU2Z-14474-DA 1.5
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-BA
2 CE420 (GY-VT) 18 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) BU5T-14474-BA
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BA
7 * * Not Used N/A
8 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AA
9 VE819 (GN-VT) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) BU5T-14474-AA
10 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) BU5T-14474-AA
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) BU5T-14474-BA
15 VET76 (GN-OG) 18 CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1) BU5T-14474-BA
16 * * Not Used N/A
17 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) BU5T-14474-AA
18 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) BU5T-14474-BA
19 CET34 (BN-GN) 20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) BU5T-14474-AA
20 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) BU5T-14474-AA
21 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BA
22 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AA
23 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AA
24 * * Not Used N/A
25 CMC24 (GY) 18 SWITCH - OIL PRESSURE BU5T-14474-BA
26 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) BU5T-14474-AA
27 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + BU5T-14474-AA
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 CE104 (GN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC) BU5T-14474-BA
32 VE803 (BU-GN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + BU5T-14474-AA
33 * * Not Used N/A
34 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) BU5T-14474-AA
35 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-AA
36 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BA
37 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AA
38 * * Not Used N/A
39 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AA
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 DE135 (WH) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D BU5T-14474-AA
45 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + BU5T-14474-AA
46 CE103 (BU-BN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC) BU5T-14474-BA
47 CE102 (YE-BU) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-) BU5T-14474-BA
48 CE101 (WH-VT) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+) BU5T-14474-BA
49 CE426 (BU-GN) 20 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) BU5T-14474-AA
50 CE412 (YE-VT) 20 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) BU5T-14474-AA
51 * * Not Used N/A
52 CE205 (GN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + BU5T-14474-AA
53 CE207 (VT-GY) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + BU5T-14474-AA
54 CE208 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + BU5T-14474-AA
55 CE206 (GY-YE) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + BU5T-14474-AA
56 * * Not Used N/A
57 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - BU5T-14474-AA
58 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-AA
59 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - BU5T-14474-BA
60 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-BA
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 * * Not Used N/A
77 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-UA
78 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-UA
79 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) 7C3T-14474-DA
80 * * Not Used N/A
81 * * Not Used N/A
82 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-UA
83 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-UA
84 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) 7C3T-14474-DA
85 * * Not Used N/A
86 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) BU5T-14474-UA
87 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-UA
88 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-UA
89 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) 7C3T-14474-DA
90 * * Not Used N/A
91 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) 7C3T-14474-DA
92 * * Not Used N/A
93 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) 7C3T-14474-DA
94 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) 7C3T-14474-DA
95 * * Not Used N/A
