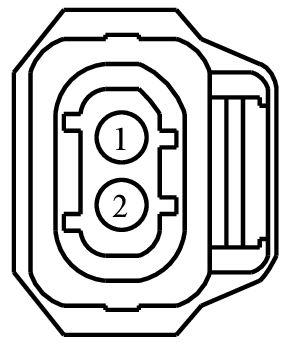

Connector End View (C1182) - FUEL INJECTOR 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1182	FUEL INJECTOR 2	9H589/9F666			9F593	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE206 (GY-YE)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ)	N/A
2	RE206 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1302

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ARA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
