Connector End View (C1026) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1026	INLINE	12C50812A581			See Below

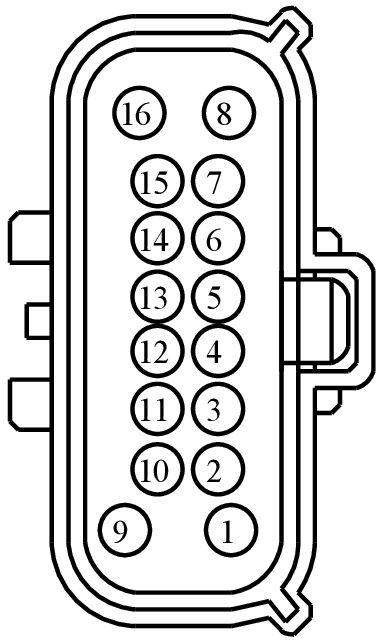

MALE

Harness

12C508

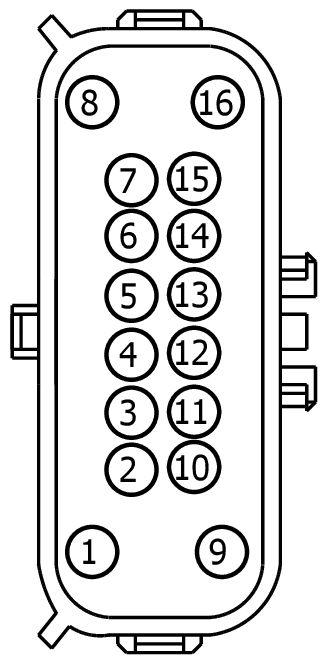

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14421-JA	EU2Z-14421-FA	2.8
2L1T-14421-CA	EU2Z-14421-CA	1.5
BU5T-14421-HA	EU2Z-14421-CA	1.5
7U5T-14421-BA	EU2Z-14421-CA	1.5
97BG-14474-BFA	DU2Z-14474-FA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
97BG-14474-BDA	DU2Z-14474-FA	2.8
1F1T-14474-FA	DU2Z-14474-FA	2.8
1F1T-14474-JA	DU2Z-14474-FA	2.8
1F1T-14474-GA	DU2Z-14474-FA	2.8
1F1T-14421-GA	EU2Z-14421-FA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	12	1F1T-14421-JA
2	CBK03 (GY)	18	2L1T-14421-CA
3	CMC14 (BN-YE)	18	2.7L/3.0L	2L1T-14421-CA
3	VE803 (BU-GN)	18	1.5L	NA
4	CE113 (WH-BN)	18	2L1T-14421-CA
4	CET34 (BN-GN)	20	2.5L	BU5T-14421-HA
4	VET27 (BN-YE)	18	1.5L	2L1T-14421-CA
5	CMC14 (BN-YE)	18	2.0L	2L1T-14421-CA
5	RE406 (GY-VT)	18	1.5L	2L1T-14421-CA
5	VE763 (YE)	18	2.7L/3.0L	2L1T-14421-CA
6	CE233 (WH-OG)	18	2.7L/3.0L	2L1T-14421-CA
6	VE731 (YE-GN)	18	2.5L	2L1T-14421-CA
7	RE406 (GY-VT)	20	2.5L	BU5T-14421-HA
7	VE731 (YE-GN)	18	2.7L/3.0L	7U5T-14421-BA
8	RE406 (GY-VT)	18	2.7L/3.0L	1F1T-14421-GA
9	CBK01 (BU)	18	1F1T-14421-GA
10	LE329 (BU)	18	2.7L/3.0L	2L1T-14421-CA
10	VET76 (GN-OG)	18	2.5L	2L1T-14421-CA
10	VYT11 (VT-GY)	16	2L1T-14421-CA
10	VYT11 (VT-GY)	18	1.5L	2L1T-14421-CA
11	CE420 (GY-VT)	18	2.5L	2L1T-14421-CA
11	VE821 (WH-VT)	18	2.7L/3.0L	2L1T-14421-CA
11	VYT12 (YE-GN)	16	2.0L	2L1T-14421-CA
12	CE233 (WH-OG)	18	1.5L, 2.0L	2L1T-14421-CA
12	VE175 (BN-WH)	18	2.7L/3.0L	2L1T-14421-CA
13	CE234 (BU-WH)	18	2.7L/3.0L	2L1T-14421-CA
13	VE731 (YE-GN)	18	1.5L, 2.0L	2L1T-14421-CA
14	RE731 (WH)	18	1.5L, 2.0L	2L1T-14421-CA
14	VE733 (WH)	18	2.7L/3.0L	7U5T-14421-BA
15	RE407 (YE-VT)	18	2.7L/3.0L	7U5T-14421-BA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	14	97BG-14474-BFA
2	CBK03 (GY)	18	7C3T-14474-DA
3	VE774 (YE-GN)	20	2.7L/3.0L	BU5T-14474-UA
3	VE803 (BU-GN)	18	Ford china-1.5L	7C3T-14474-DA
3	VE803 (WH-BU)	20	1.5L	BU5T-14474-UA
3	VE804 (BN-VT)	18	2.5L	7C3T-14474-DA
4	CE113 (WH-BN)	18	7C3T-14474-DA
4	CE113 (WH-BN)	20	1.5L	BU5T-14474-UA
5	CET25 (BU)	18	China	N/A
5	CET25 (BU-GN)	18	7C3T-14474-DA
5	VE779 (YE-GN)	20	2.7L/3.0L	BU5T-14474-UA
6	CE233 (WH-OG)	20	2.7L/3.0L	BU5T-14474-UA
6	VE722 (BN)	18	1.5L	7C3T-14474-DA
6	VE731 (BN-GN)	18	2.5L	7C3T-14474-DA
7	RE242 (GN)	18	2.5L	7C3T-14474-DA
7	VE731 (YE-GN)	20	2.7L/3.0L	BU5T-14474-UA
7	VE804 (GN-BN)	18	Ford china	7C3T-14474-DA
7	VE804 (GN-BU)	20	1.5L	BU5T-14474-UA
8	RE134 (BU-OG)	20	2.7L/3.0L	97BG-14474-BDA
8	RE320 (BU)	20	1.5L	1F1T-14474-FA
9	CE608 (VT-GN)	12	1F1T-14474-JA
10	VE850 (WH-VT)	20	2.7L/3.0L	BU5T-14474-UA
10	VET77 (GY-YE)	18	2.5L	7C3T-14474-DA
10	VYT11 (VT-GY)	18	1.5L	7C3T-14474-DA
11	CE420 (GY-VT)	20	2.5L	BU5T-14474-UA
11	VE837 (WH)	20	2.7L/3.0L	BU5T-14474-UA
11	VYT12 (VT-GN)	18	Ford china	7C3T-14474-DA
11	VYT12 (YE-GN)	18	2.0L	7C3T-14474-DA
12	CE233 (WH-OG)	18	1.5L, 2.0L	7C3T-14474-DA
12	REK03 (YE-GY)	18	2.7L/3.0L	7C3T-14474-DA
13	CE234 (BU-WH)	18	2.7L/3.0L	7C3T-14474-DA
13	VE731 (YE-GN)	18	1.5L, 2.0L	7C3T-14474-DA
14	RE242 (GN)	18	1.5L, 2.0L	7C3T-14474-DA
14	VE733 (WH)	18	2.7L/3.0L	7C3T-14474-DA
15	RE733 (GN)	18	2.7L/3.0L	7C3T-14474-DA
15	VE716 (YE)	20	1.5L	BU5T-14474-UA
16	CBK02 (GN)	16	6 SPEED - AUTOMATIC TRANSMISSION - 6F55	1F1T-14474-GA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1393

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-KB

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-1142

Pigtail Kit Part Number WPT-1541

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-KA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• In-Line - Auxiliary Engine Connector
• Module - Glow Plug
