Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310B RESTRAINTS CONTROL MODULE (RCM) 14A005 #N/A Not Available

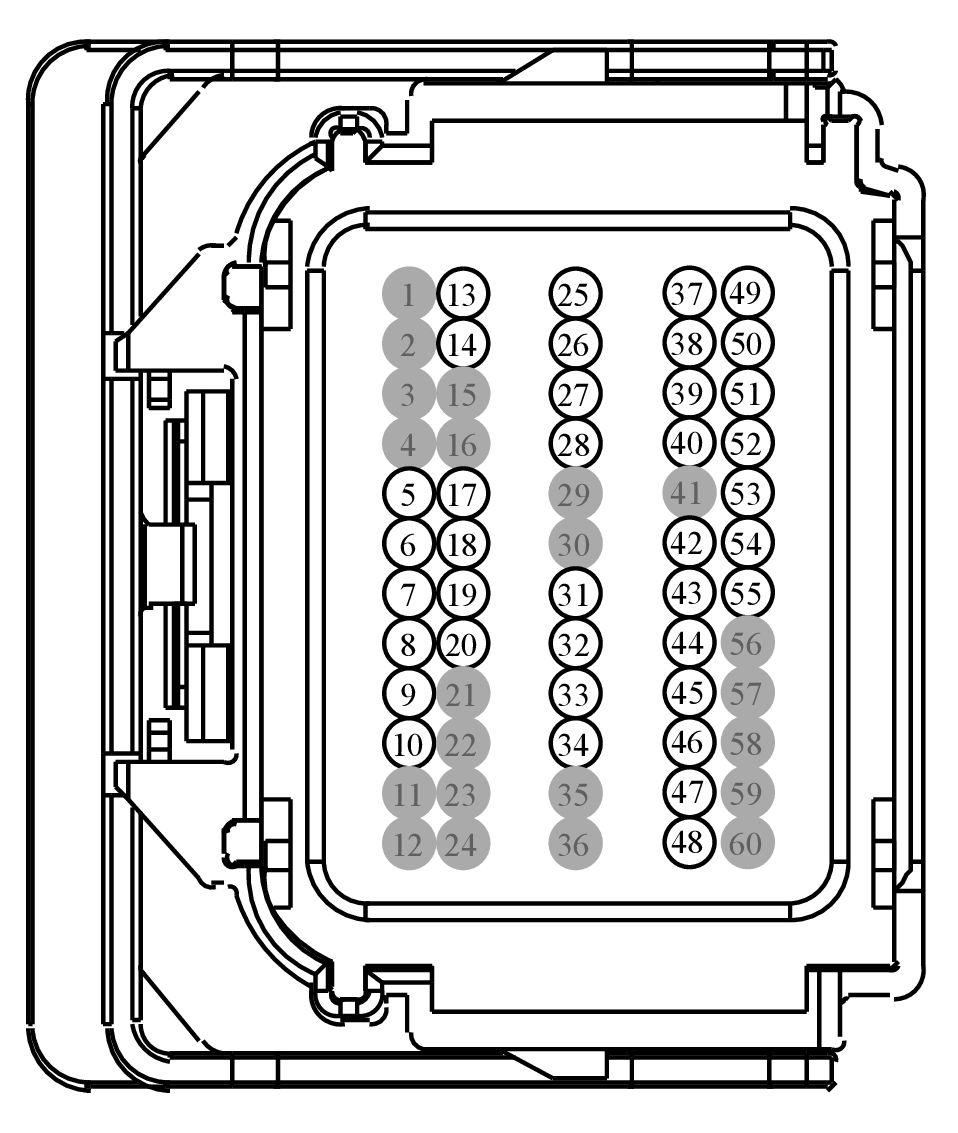

GFDWR88659Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
8U5T-14474-BA DU2Z-14474-CA 0.64
8U5T-14474-CA DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 CR123 (GN-VT) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE + 8U5T-14474-BA
6 RR123 (GY) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE - 8U5T-14474-BA
7 RR125 (GN) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD - 8U5T-14474-BA
8 CR125 (BU-BN) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD + 8U5T-14474-BA
9 CR171 (VT-GN) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) + 8U5T-14474-BA
10 RR171 (GY) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) - 8U5T-14474-BA
11 * * Not Used N/A
12 * * Not Used N/A
13 CR147 (GN-OG) 20 CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + 8U5T-14474-BA
14 RR147 (YE-VT) 20 CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - 8U5T-14474-BA
15 * * Not Used N/A
16 * * Not Used N/A
17 CR111 (BN-WH) 18 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + 8U5T-14474-CA
17 CR111 (BN-WH) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + Lincoln 8U5T-14474-BA
18 RR111 (YE-VT) 18 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - 8U5T-14474-CA
18 RR111 (YE-VT) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - Lincoln 8U5T-14474-BA
19 RR170 (BN-BU) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) - 8U5T-14474-BA
20 CR170 (GN) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) + 8U5T-14474-BA
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 CR109 (BN-BU) 18 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + 8U5T-14474-CA
25 CR109 (BN-BU) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + Lincoln 8U5T-14474-BA
26 RR109 (BU-GN) 18 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - 8U5T-14474-CA
26 RR109 (BU-GN) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - Lincoln 8U5T-14474-BA
27 VR215 (YE-VT) 20 SENSOR - SEAT TRACK POSITION DRIVER 8U5T-14474-BA
28 VR216 (GN-OG) 20 SENSOR - SEAT TRACK POSITION FRONT PASSENGER 8U5T-14474-BA
28 CR228 (BN-VT) 20 SENSOR - SEAT OCCUPANT (SEATBELT REMINDER) FRONT PASSENGER OUTBOARD Ford China N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 VR218 (YE-OG) 22 SENSOR - SIDE IMPACT FRONT PASSENGER SIDE 8U5T-14474-BA
31 VR222 (GY-OG) 22 SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE Lincoln 8U5T-14474-BA
32 RR132 (BU-WH) 22 CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - 8U5T-14474-BA
32 RR136 (BN-WH) 22 CTRL MOD. - SENSOR SIDE IMPACT ROW 3 PASSENGER SIDE - Lincoln 8U5T-14474-BA
33 RR131 (VT-GY) 22 CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - 8U5T-14474-BA
33 RR135 (GN-BN) 22 CTRL MOD. - SENSOR SIDE IMPACT ROW 3 DRIVER SIDE - Lincoln 8U5T-14474-BA
34 VR217 (GY-YE) 22 SENSOR - SIDE IMPACT FRONT DRIVER SIDE 8U5T-14474-BA
34 VR221 (BU-GN) 22 SENSOR - SIDE IMPACT ROW 3 DRIVER SIDE Lincoln 8U5T-14474-BA
35 * * Not Used N/A
36 * * Not Used N/A
37 CR106 (VT-GY) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + 8U5T-14474-BA
38 RR106 (YE-OG) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - 8U5T-14474-BA
39 RR105 (GY-YE) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - Ford China 8U5T-14474-BA
39 RR105 (GY-YE) 4 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - Ford, Lincoln N/A
40 CR105 (GN-BU) 4 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + Ford, Lincoln N/A
40 CR105 (GN-BU) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + Ford China 8U5T-14474-BA
41 * * Not Used N/A
42 CR167 (YE-VT) 18 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) Lincoln 8U5T-14474-CA
42 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 8U5T-14474-BA
43 VR218 (YE-OG) 20 SENSOR - SIDE IMPACT FRONT PASSENGER SIDE Lincoln 8U5T-14474-BA
43 VR220 (VT-OG) 20 SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE 8U5T-14474-BA
44 RR132 (BU-WH) 20 CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - Lincoln 8U5T-14474-BA
44 RR134 (BN-BU) 20 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - 8U5T-14474-BA
45 RR131 (VT-GY) 20 CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - Lincoln 8U5T-14474-BA
45 RR133 (GY-BN) 20 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - 8U5T-14474-BA
46 VR217 (GY-YE) 20 SENSOR - SIDE IMPACT FRONT DRIVER SIDE Lincoln 8U5T-14474-BA
46 VR219 (GN-WH) 20 SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE 8U5T-14474-BA
47 VDB26 (GY-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW 8U5T-14474-BA
47 VDB26 (GY-BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW Lincoln 8U5T-14474-BA
48 VDB25 (GN-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH 8U5T-14474-BA
48 VDB25 (GN-OG) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH Lincoln 8U5T-14474-BA
49 CR122 (WH-OG) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD + 8U5T-14474-BA
49 CR171 (VT-GN) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) + Ford China N/A
50 RR171 (GY) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) - Ford China N/A
50 RR122 (BN) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT PASSENGER OUTBOARD - 8U5T-14474-BA
51 RR120 (BN-GN) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE - 8U5T-14474-BA
51 RR170 (BN-BU) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) - Ford China N/A
52 CR170 (GN) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE (#2) + Ford China N/A
52 CR120 (BU-OG) 20 CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE + 8U5T-14474-BA
53 RR137 (BU-GY) 20 CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER - 8U5T-14474-BA
54 CR201 (GN-BU) 20 SENSOR - SEATBELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE 8U5T-14474-BA
55 CR203 (GY-VT) 20 SENSOR - SEATBELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD 8U5T-14474-BA
56 * * Not Used N/A
57 * * Not Used N/A
58 * * Not Used N/A
59 * * Not Used N/A
60 * * Not Used N/A
