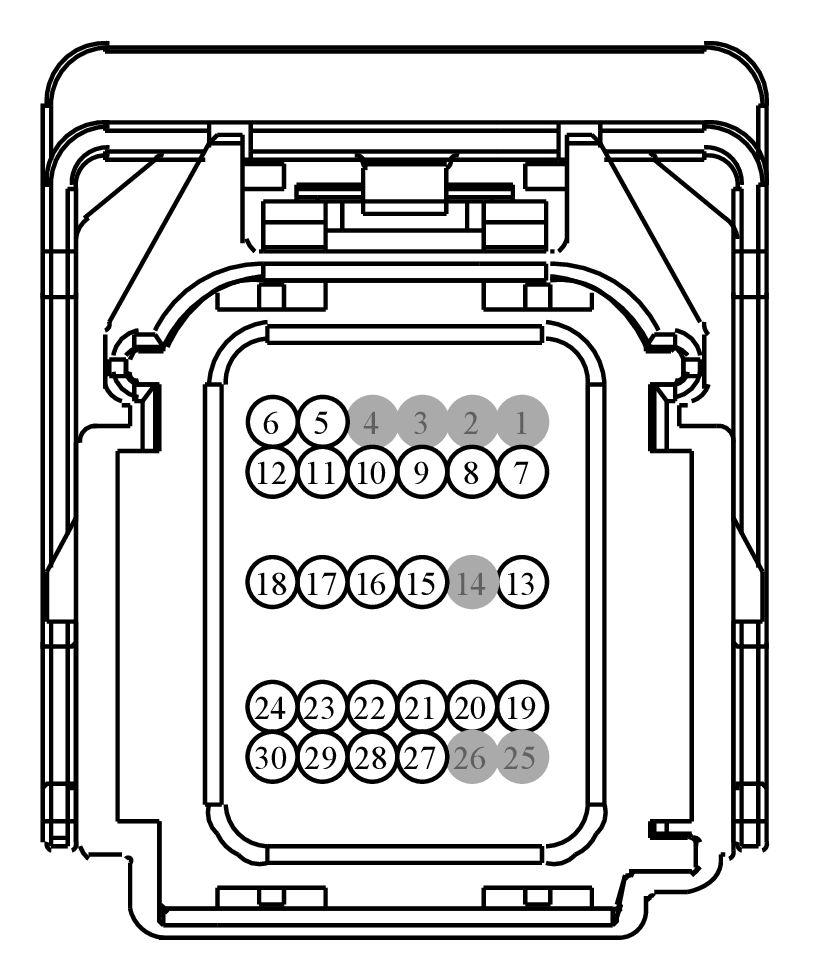

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C310A	RESTRAINTS CONTROL MODULE (RCM)	14401			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64
8U5T-14474-CA	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +	8U5T-14474-BA
6	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -	8U5T-14474-BA
7	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +	8U5T-14474-BA
8	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -	8U5T-14474-BA
9	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -	8U5T-14474-BA
10	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +	8U5T-14474-BA
11	CR169 (VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +	8U5T-14474-BA
12	RR169 (GY-VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -	8U5T-14474-BA
12	RR169 (VT-GY)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -	Ford China	N/A
13	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +	8U5T-14474-BA
14	*	*	Not Used	N/A
15	VR214 (WH-BU)	20	SENSOR - IMPACT FRONT 2ND	8U5T-14474-BA
16	RR130 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND	8U5T-14474-BA
17	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	8U5T-14474-BA
18	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST	8U5T-14474-BA
19	CR194 (VT-WH)	18	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	8U5T-14474-CA
19	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER	Ford china	N/A
20	RR116 (BN-GN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -	8U5T-14474-BA
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	8U5T-14474-BA
21	RR120 (BU-GN)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE -	Ford China	N/A
22	CR120 (BU-OG)	20	CTRL MOD. - SEATBELT PRETENSIONER FRONT DRIVER SIDE +	Ford	N/A
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	8U5T-14474-BA
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	8U5T-14474-BA
23	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +	Ford china	N/A
24	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -	Ford china	N/A
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	8U5T-14474-BA
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	8U5T-14474-BA
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	8U5T-14474-BA
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	8U5T-14474-BA
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	8U5T-14474-BA
