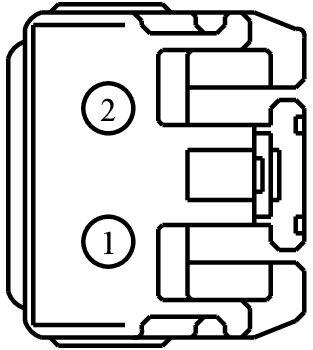

Connector End View (C297B) - BLOWER MOTOR CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C297B	BLOWER MOTOR CONTROL MODULE	18B518			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-CCA	JU2Z-14474-AB	6.3

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VH301 (YE-BU)	10	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR +	97BG-14474-CCA
2	RH301 (GY-VT)	10	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR -	97BG-14474-CCA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1486

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PB

Gauge:

12

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Inverter - DC to AC
• Module - Heated Seat
• Module - Lighting Control
• Module - Seat Memory
• Module - Variable Speed Blower Controller
• Motor - Heater/AC Blower (Auxiliary)
• Motor - Heater/AC Blower (Front)
• Radio - Amplifier
• Relay - Blower Motor
• Relay - Trailer Tow
• Resistor - Blower Motor (Front)
• Switch - Heater / A/C Blower (Front)
• Terminal - Rear Window Defroster Grid
• Trailer Tow - Vehicle Side

Pigtail Kit Part Number WPT-236

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PA

Gauge:

10

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Mirror - Vanity
• Module - Seat Memory
• Motor - Heater/AC Blower (Auxiliary)
• Motor - Heater/AC Blower (Front)
• Radio - Amplifier
• Resistor - Blower Motor (Front)
• Switch - Heater / A/C Blower (Front)
