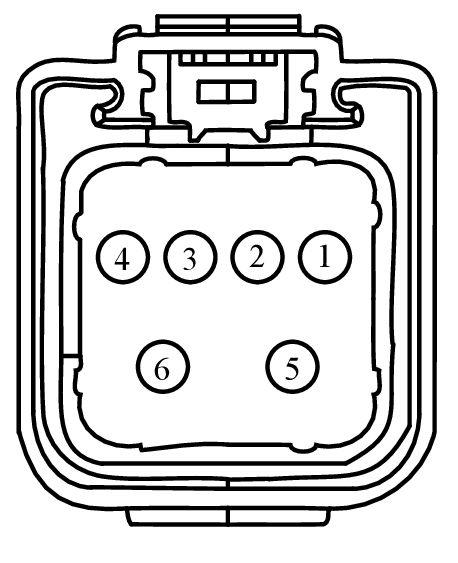

Connector End View (C297A) - BLOWER MOTOR CONTROL MODULE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C297A | BLOWER MOTOR CONTROL MODULE | 18B518 | #N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-AA | Not Available | |
| XW4T-14474-TA | JU2Z-14474-AB | 6.3 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VH101 (WH) | 26 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | DU5T-14474-AA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | GD216 (BK-VT) | 9 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | XW4T-14474-TA | ||||
| 6 | CH402 (YE-GN) | 9 | RELAY - FRONT BLOWER | XW4T-14474-TA | ||||
