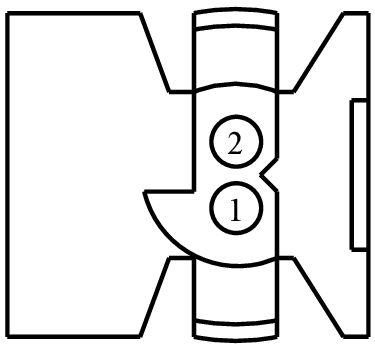

Connector End View (C216A) - DRIVER AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C216A	DRIVER AIRBAG	GY-YE	14A664	74043B13	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR101 (WH)	20	CTRL MOD. - AIR BAG DRIVER 1 +	N/A
2	RR101 (BU)	20	CTRL MOD. - AIR BAG DRIVER 1 -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1223

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BFA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
