Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts By Connectors (Hybrid)
>>
Component Location Charts by connectors
>>

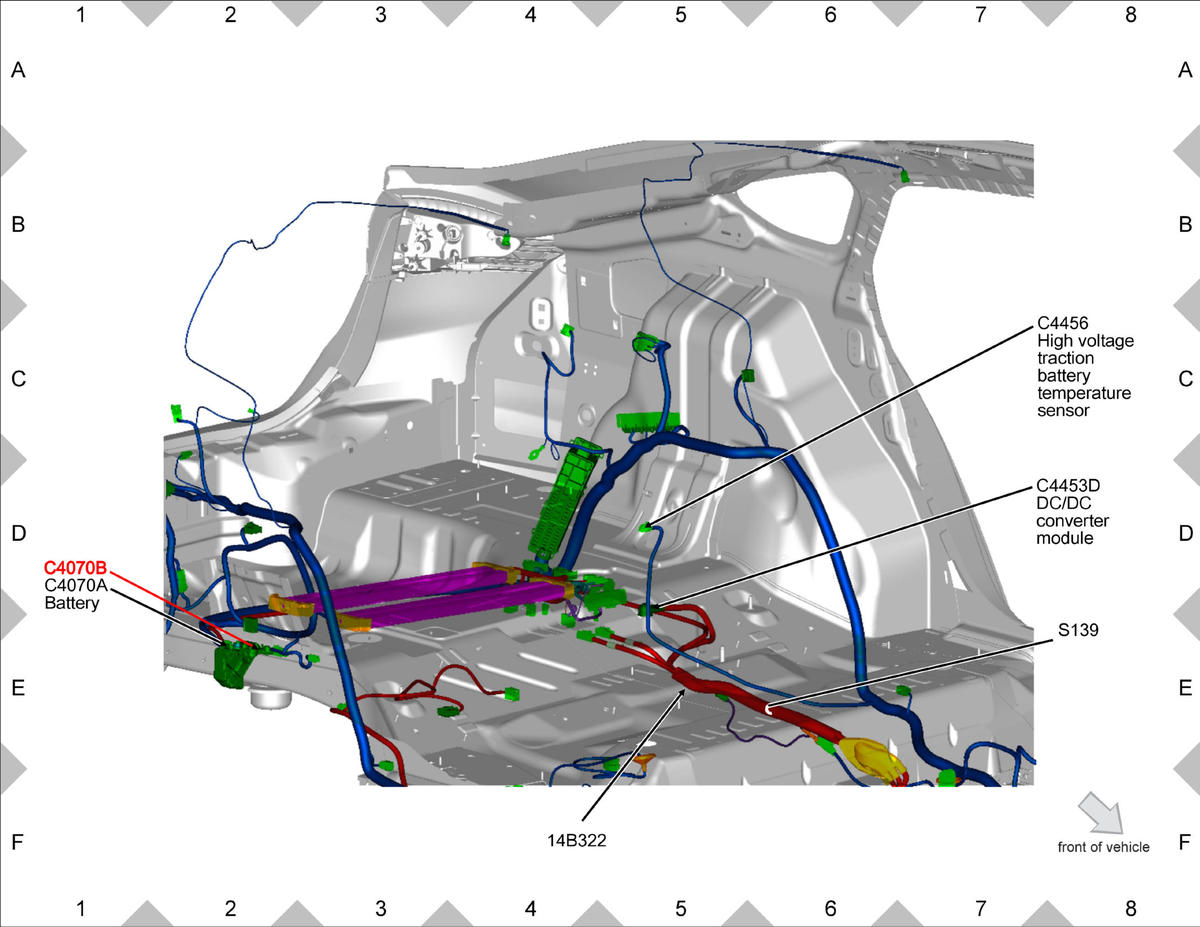

C4070B Rear of vehicle near battery packs
C4070B Rear of vehicle near battery packs
