OEM Component Harness Location Charts By Components (Hybrid)
>>
Component Location Charts By Components
>>

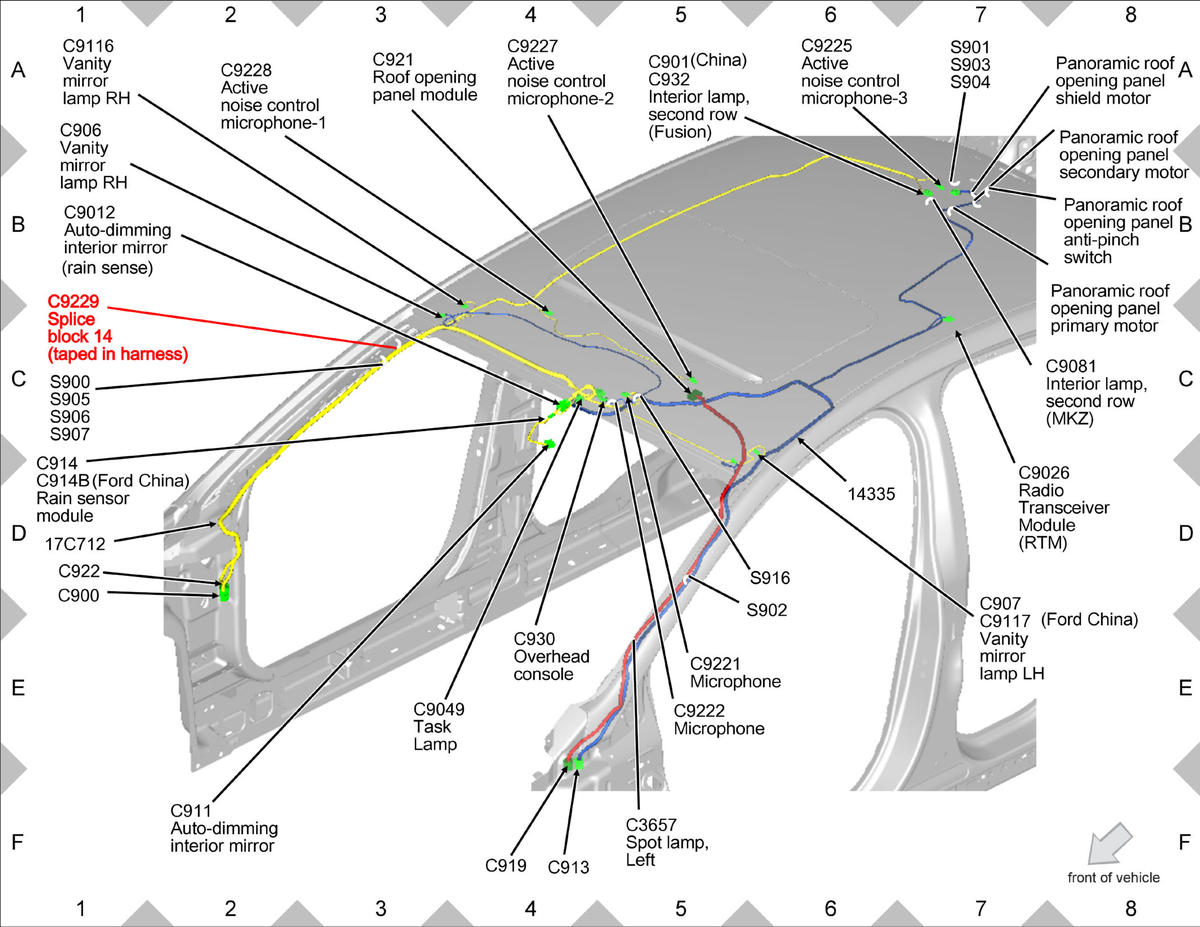

Splice block 14 (taped in harness) Wiring harness Interior lamp near TO to C914
Splice block 14 (taped in harness) Wiring harness Interior lamp near TO to C914
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
