Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Seat position sensor passenger In passenger seat base

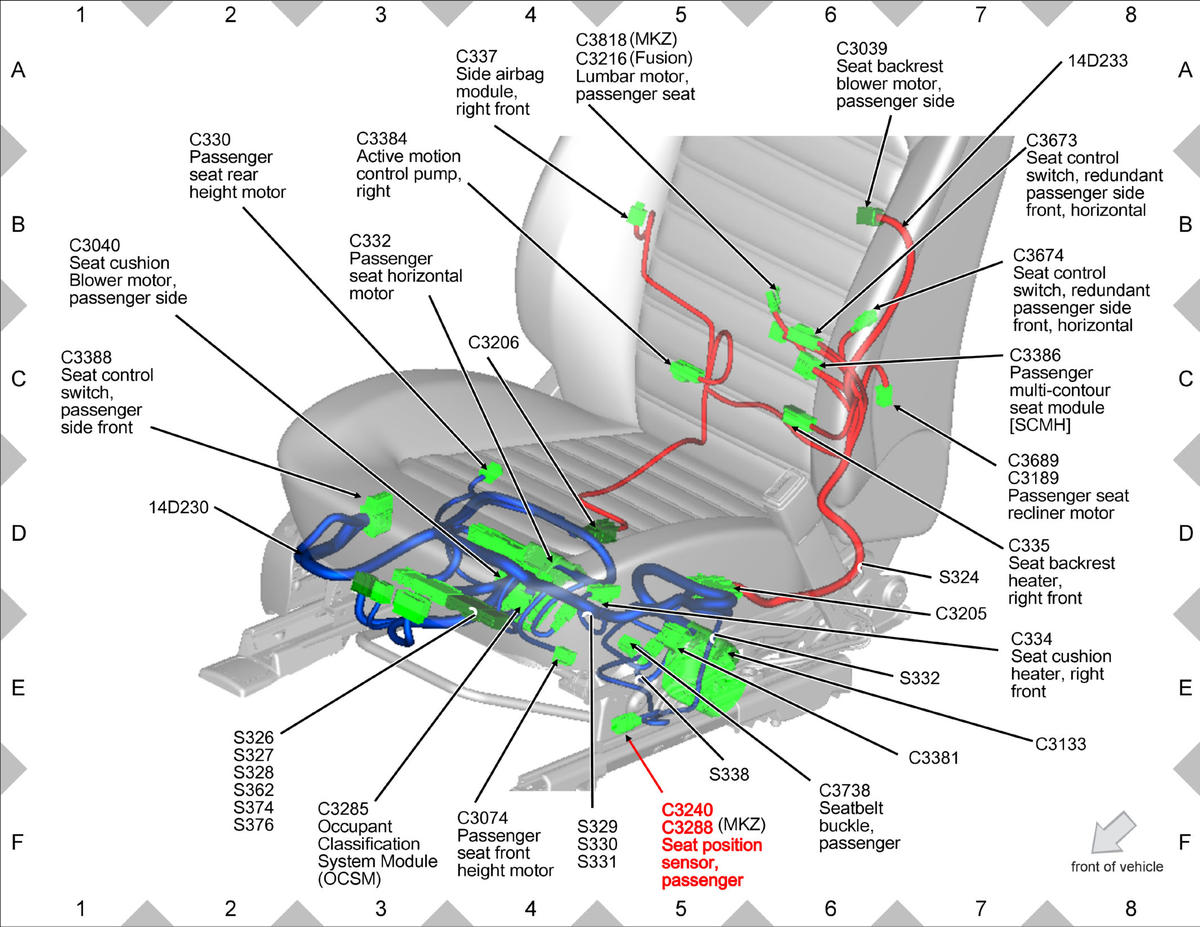

Seat position sensor passenger In passenger seat base

GFDWR97783

Courtesy of FORD MOTOR COMPANY
