Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Rear passenger power outlet socket (Fusion China)

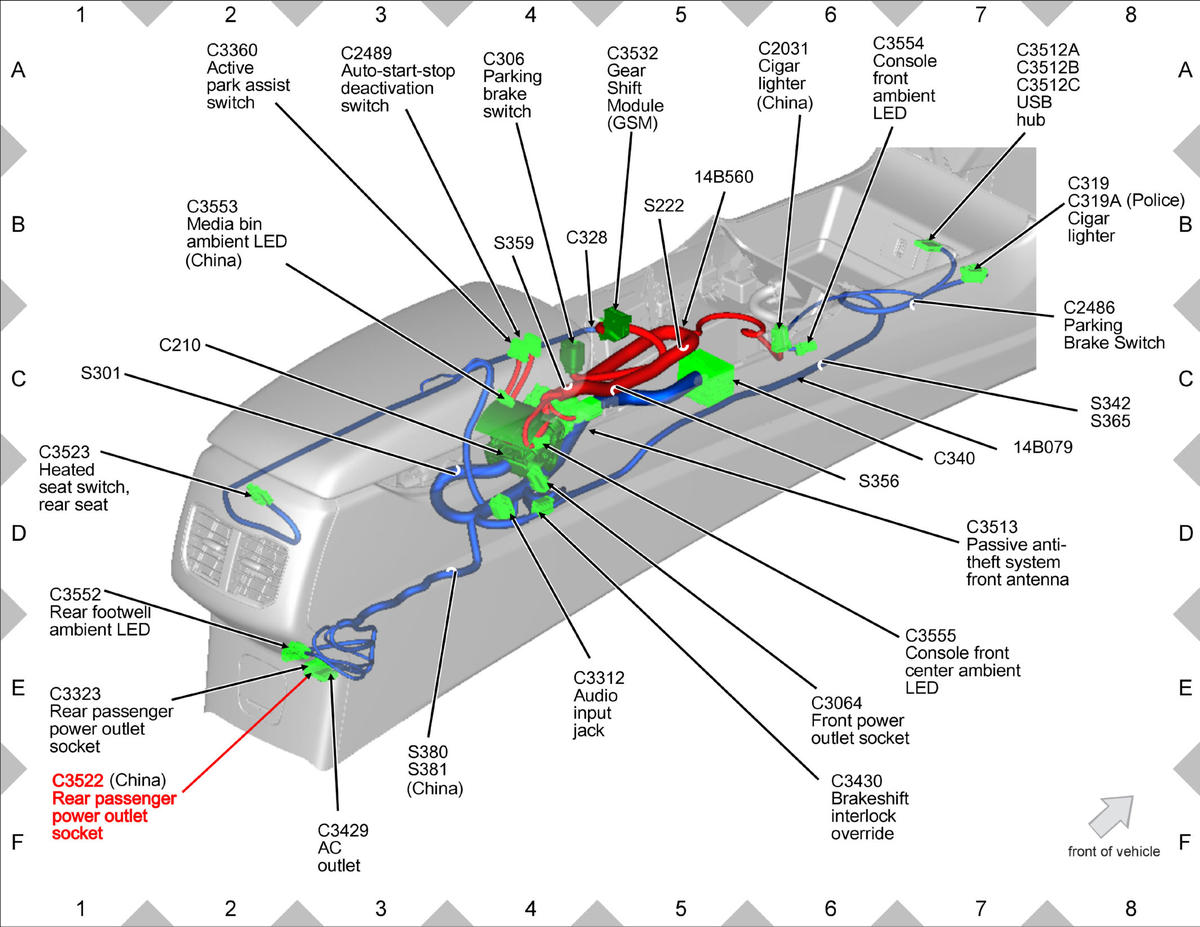

Rear passenger power outlet socket (Fusion China)

GFDWR97748

Courtesy of FORD MOTOR COMPANY
