Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Passenger seat horizontal motor In passenger seat base

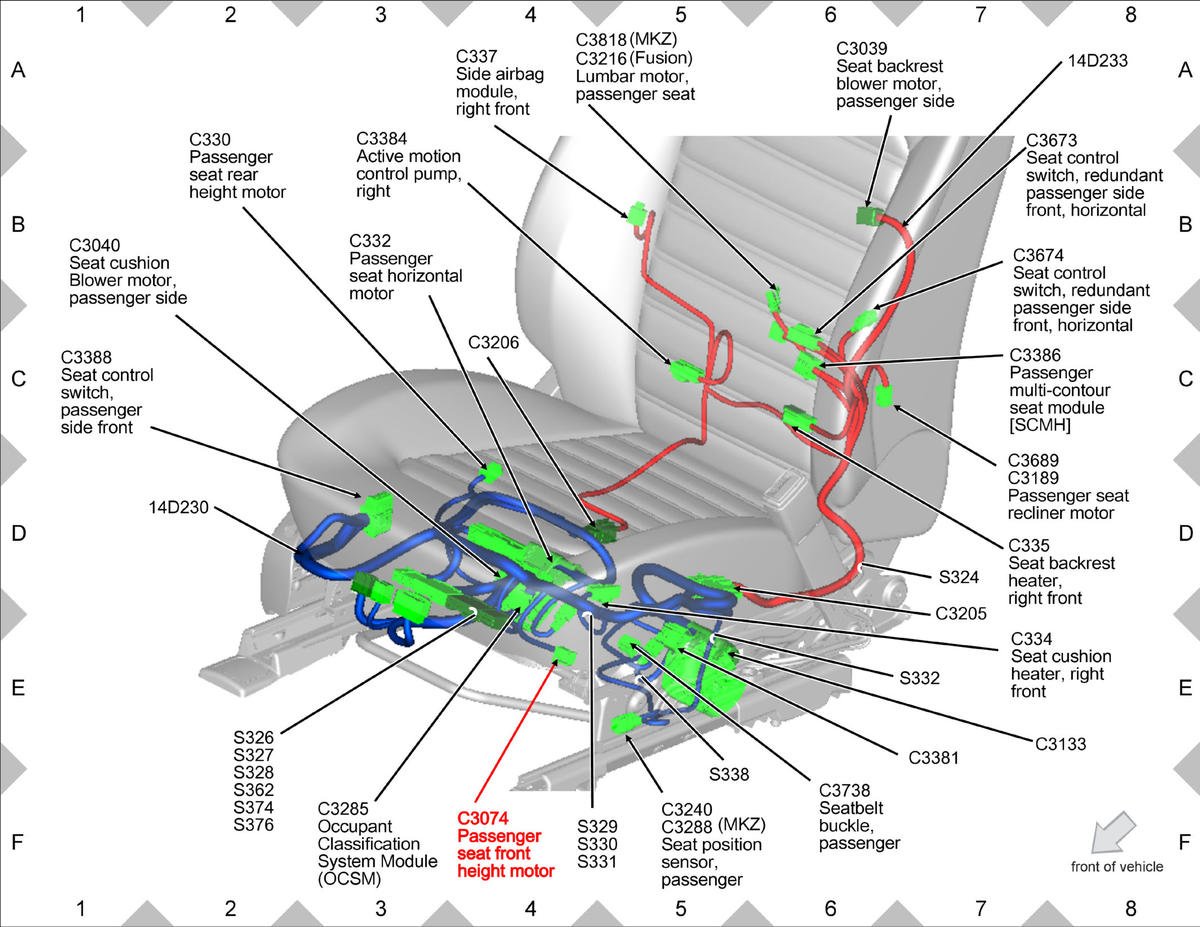

Passenger seat horizontal motor In passenger seat base

GFDWR97691

Courtesy of FORD MOTOR COMPANY
