Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Passenger Door Module (PDM) (Fusion) (1 Of 2)

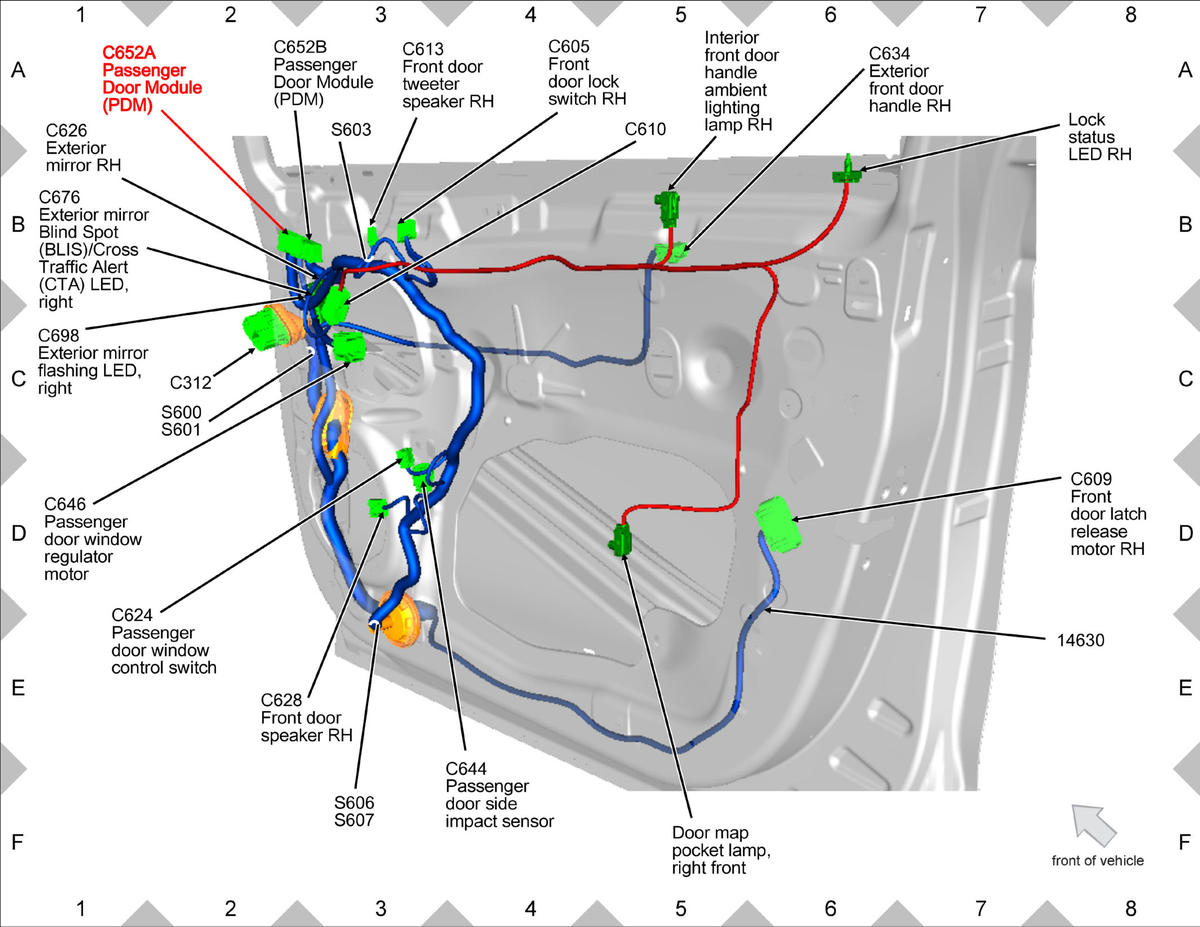

Passenger Door Module (PDM) (Fusion) (1 Of 2)

GFDWR97683

Courtesy of FORD MOTOR COMPANY
