Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Microphone In roof panel front center

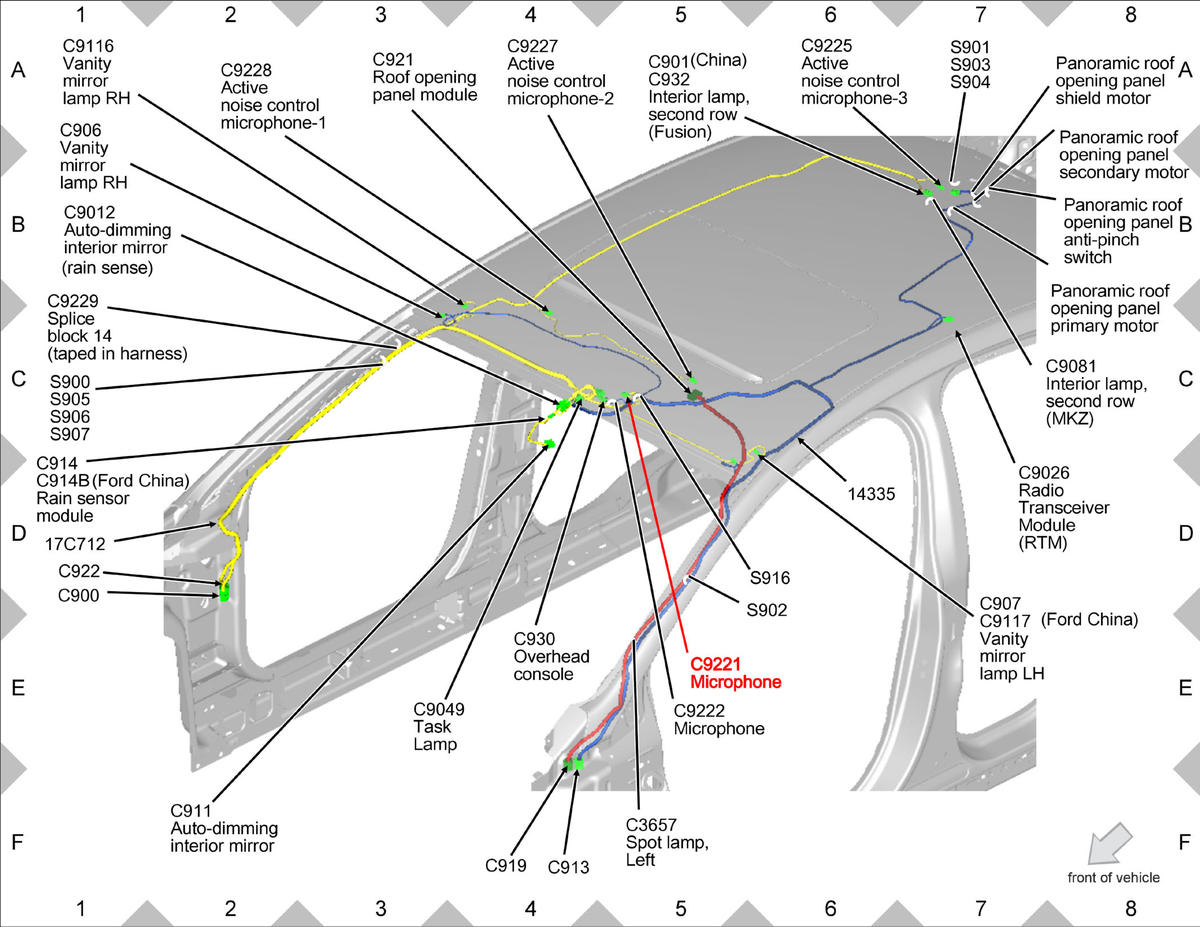

Microphone In roof panel front center

GFDWR97671

Courtesy of FORD MOTOR COMPANY
