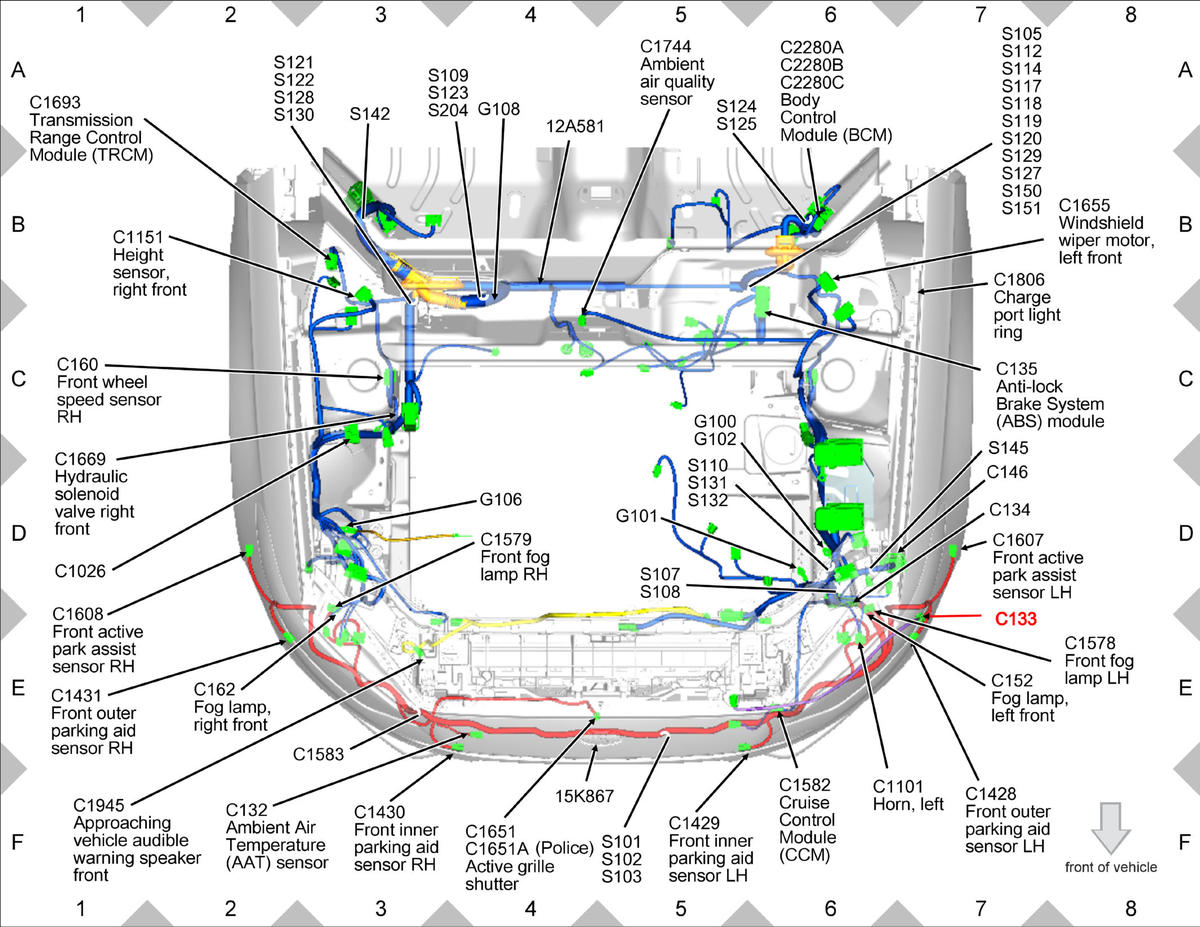

Front impact severity sensor LH Front of vehicle LH side

GFDWR97530

Courtesy of FORD MOTOR COMPANY
