Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Components (Hybrid) >> Component Location Charts By Components >> Front door tweeter speaker RH (Fusion)

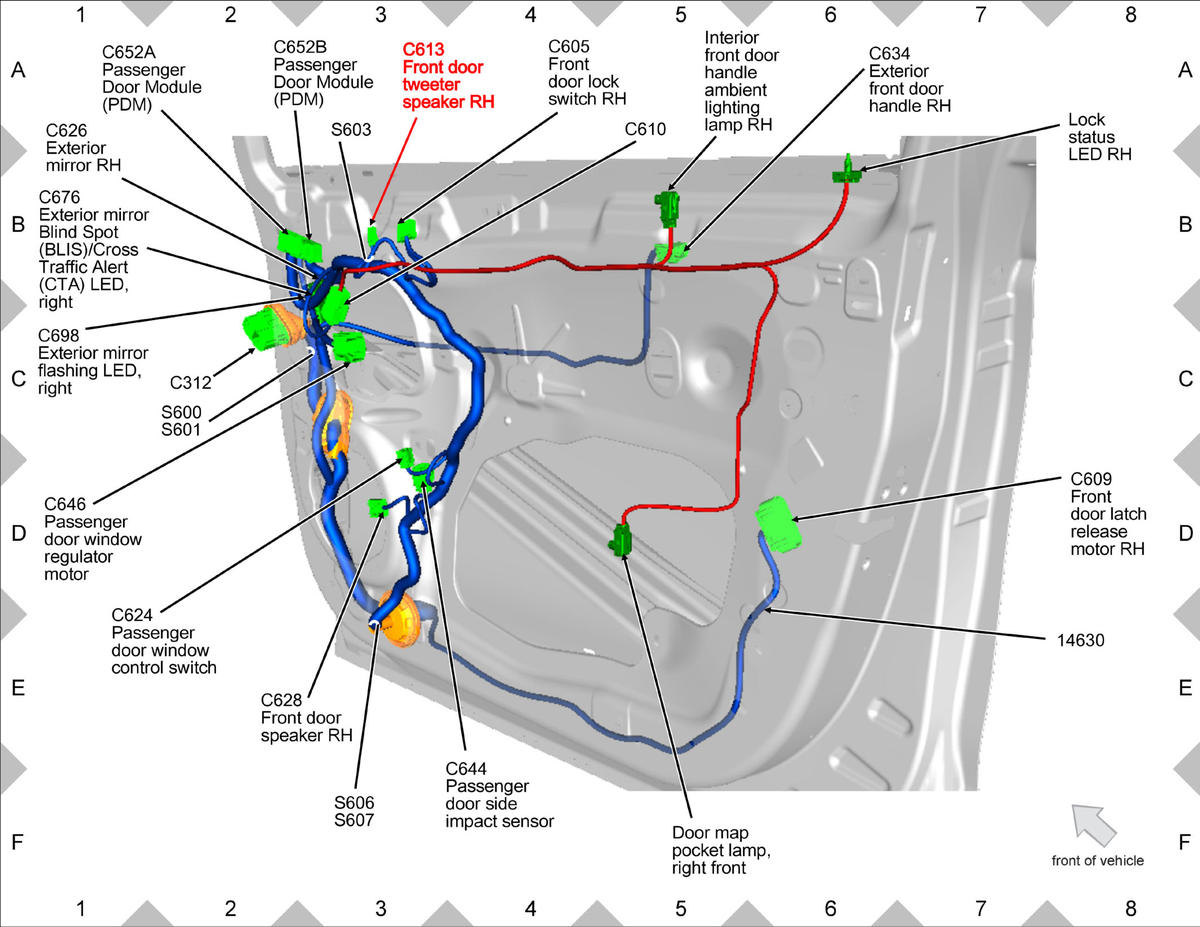

Front door tweeter speaker RH (Fusion)

GFDWR97549

Courtesy of FORD MOTOR COMPANY
