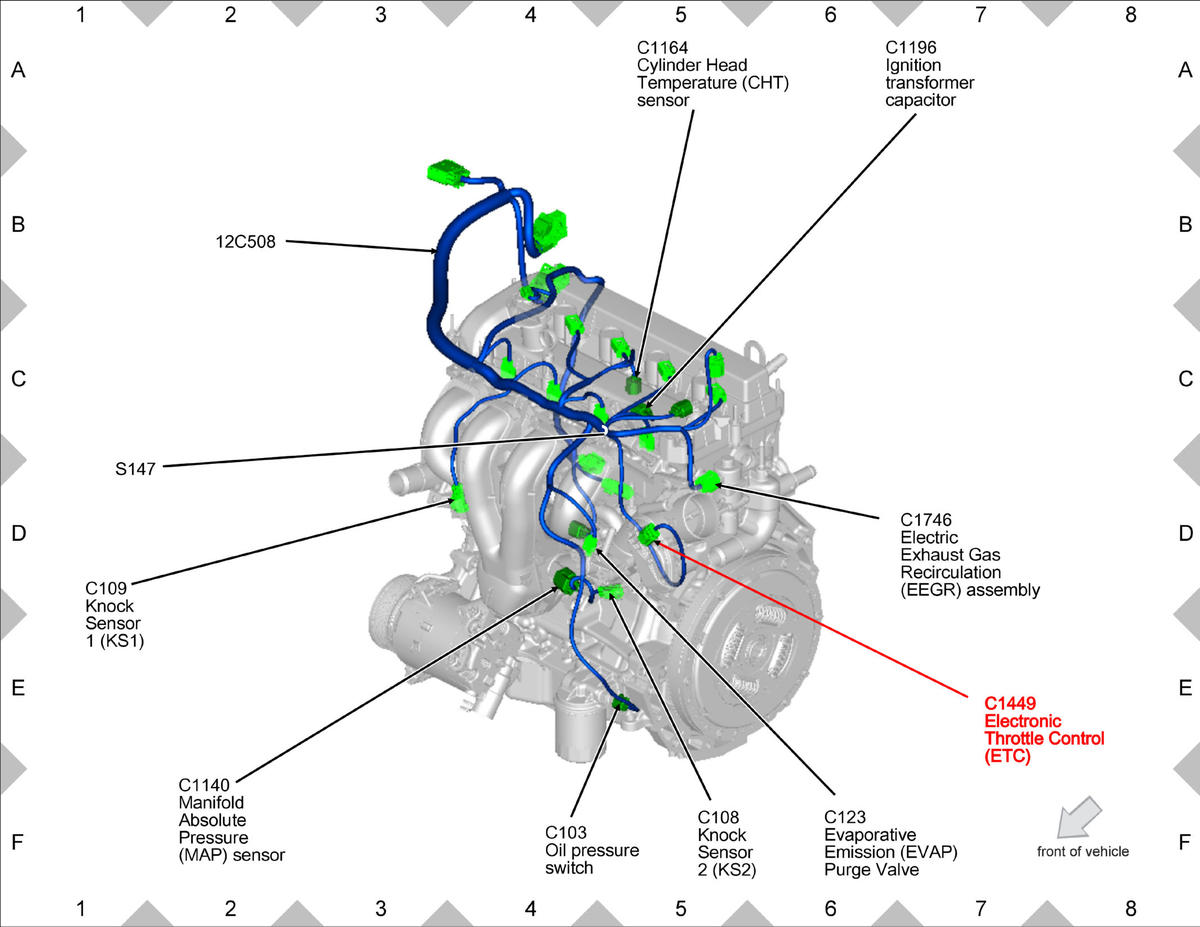

Electronic Throttle Control (ETC) On engine middle left front on throttle body

GFDWR97494

Courtesy of FORD MOTOR COMPANY
