OEM Component Harness Location Charts By Components (Hybrid)
>>
Component Location Charts By Components
>>

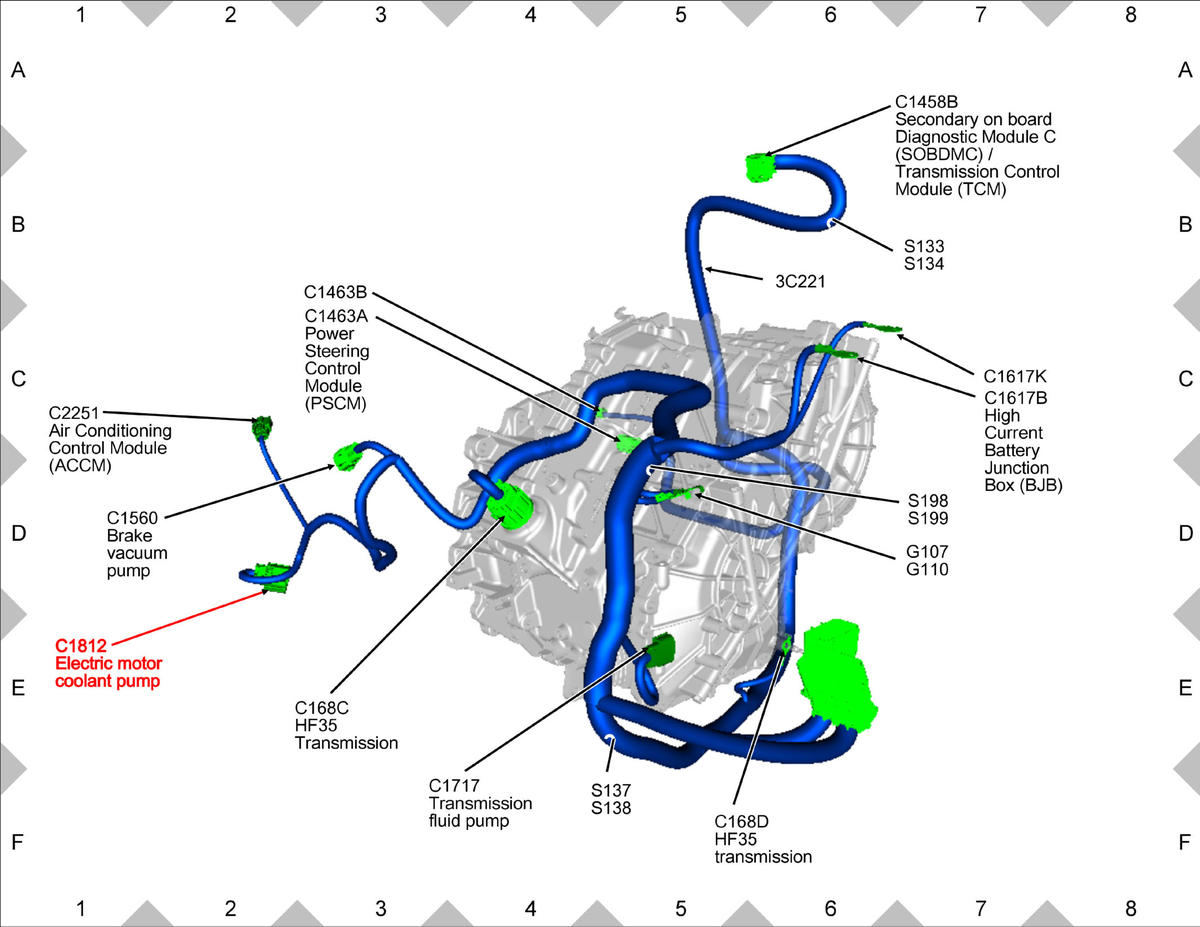

Electric motor coolant pump Left side of transaxle
Electric motor coolant pump Left side of transaxle
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
