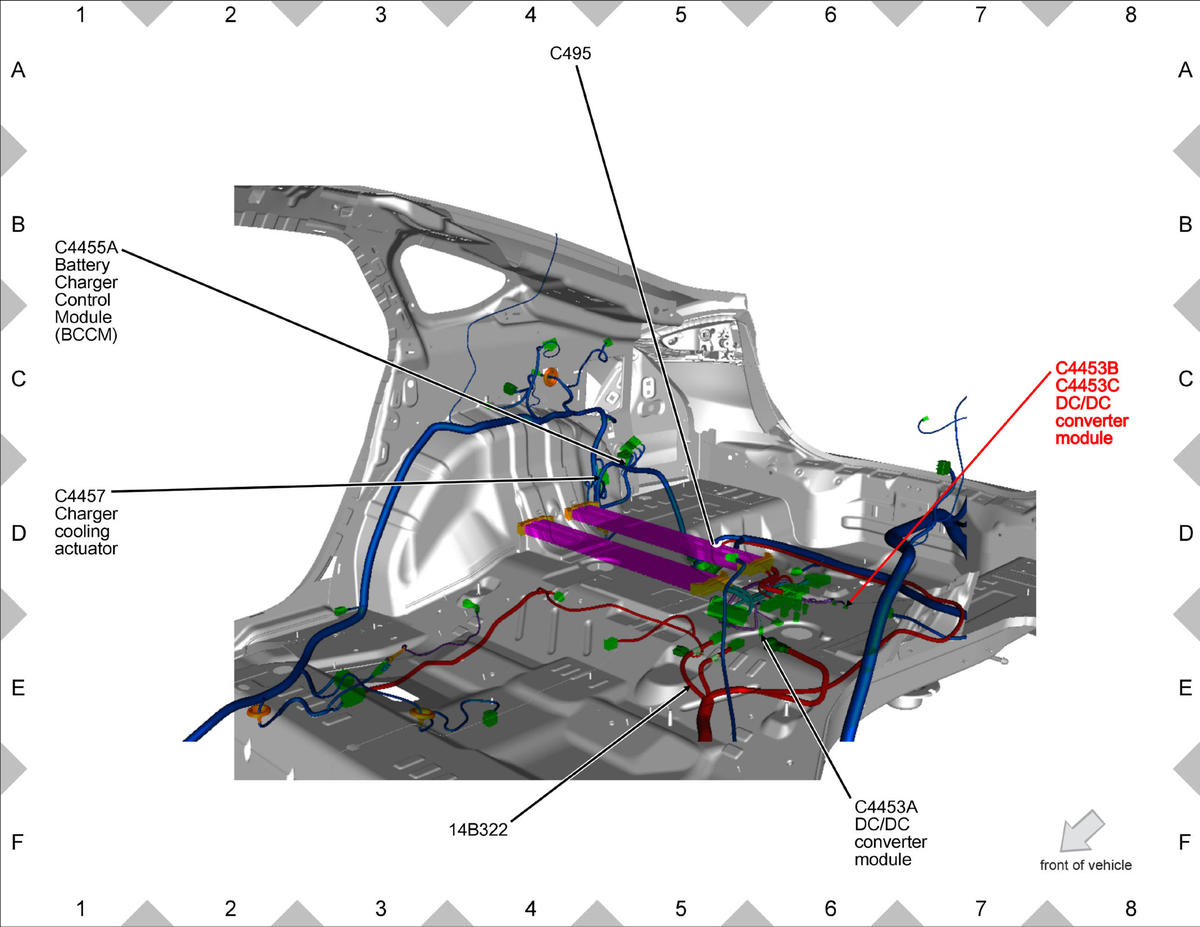

DCDC converter module Rear of vehicle left of battery packs (1 Of 2)

GFDWR97457

Courtesy of FORD MOTOR COMPANY
