OEM Component Harness Location Charts By Components (Hybrid)
>>
Component Location Charts By Components
>>

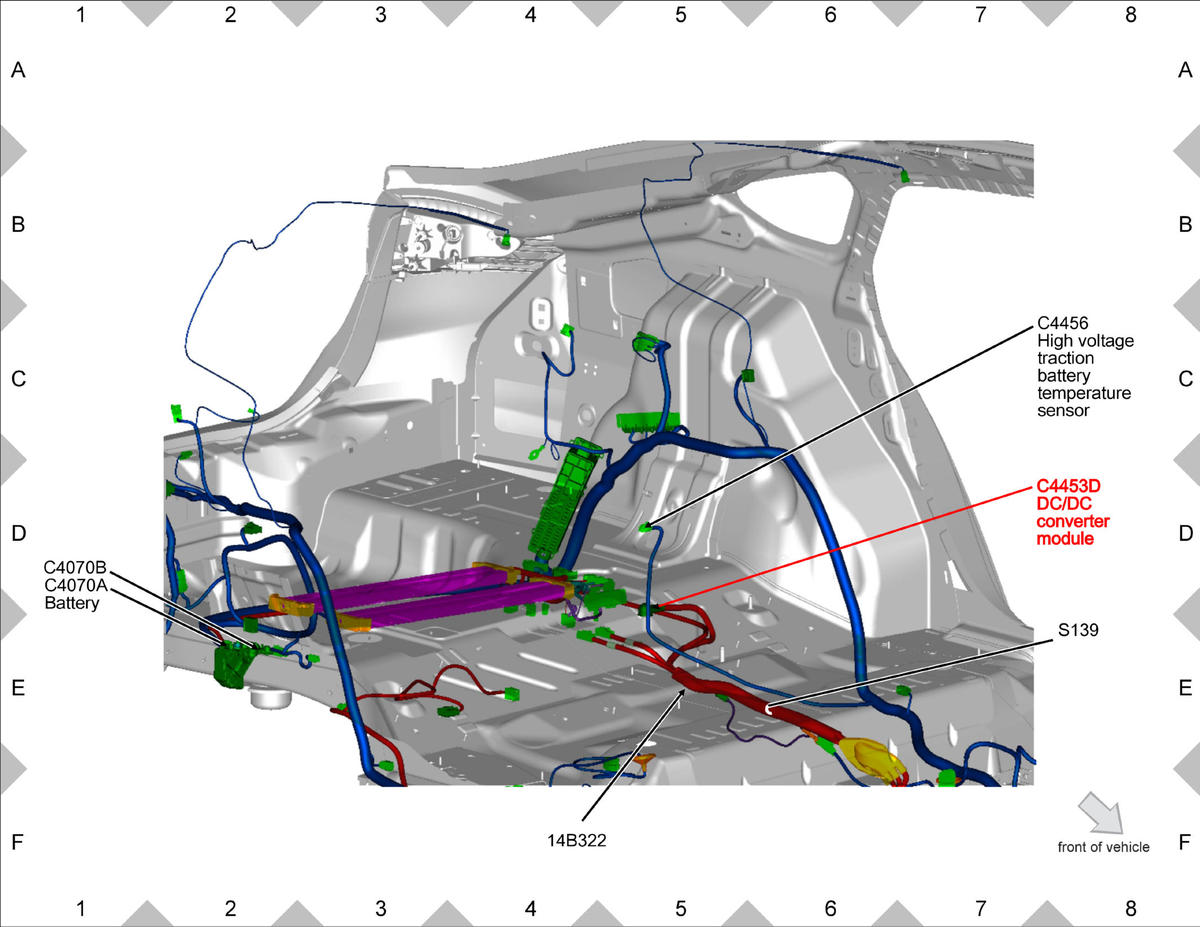

DCDC converter module Rear of vehicle above rear axle LH side
DCDC converter module Rear of vehicle above rear axle LH side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
