OEM Component Harness Location Charts By Components (Hybrid)
>>
Component Location Charts By Components
>>

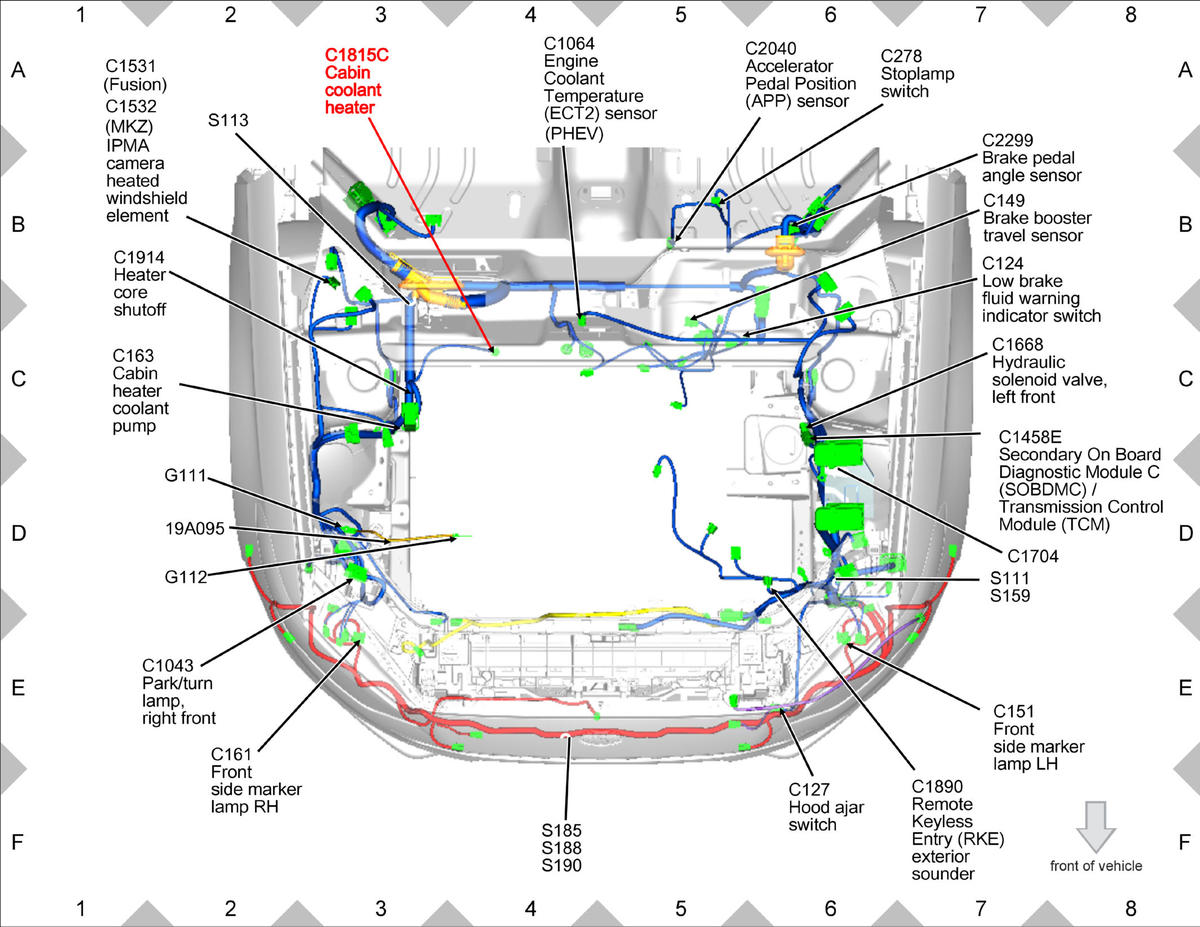

Cabin coolant heater Engine compartment RH side
Cabin coolant heater Engine compartment RH side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
