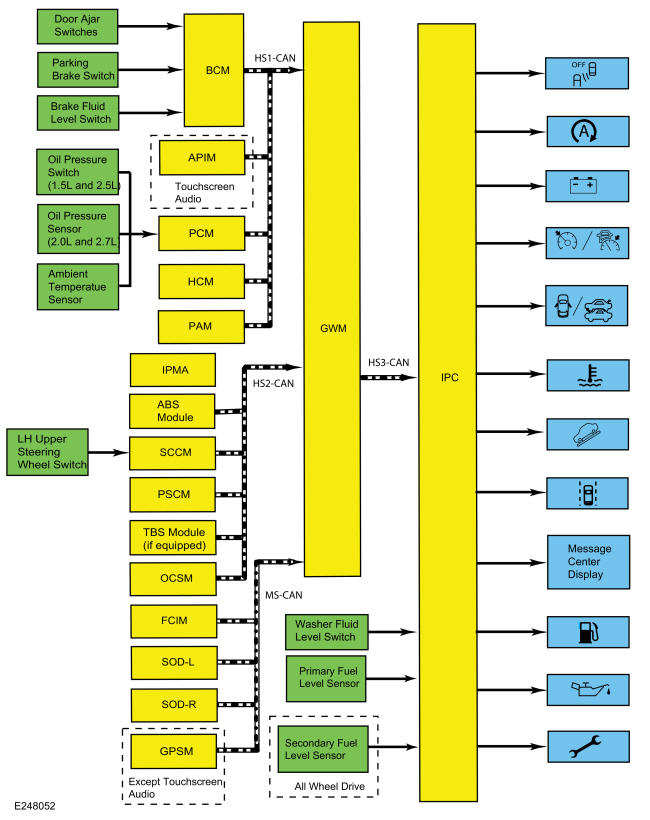

Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Gauges >> Instrumentation, Message Center And Warning Chimes (1 Of 2) (Except Hybrid) >> Description And Operation >> Message Center - System Operation and Component Description >> System Diagram
