Mid-Level IPC
Mid-Level IPC

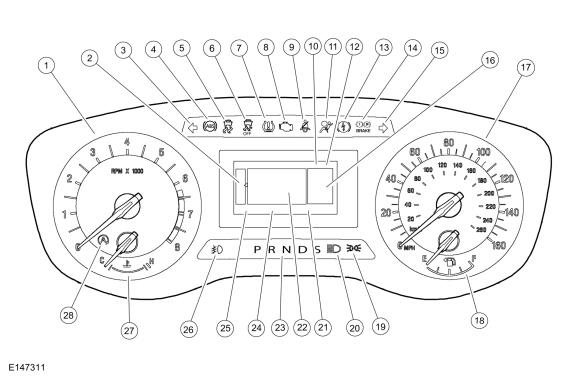

| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Main menu display |
| 3 | LH turn indicator |
| 4 | ABS warning indicator |
| 5 | Stability-traction control indicator (sliding car icon) |
| 6 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 7 | TPMS warning indicator |
| 8 | MIL |
| 9 | Safety belt warning indicator |
| 10 | Lane departure warning system on message center indicator |
| 11 | Air bag warning indicator |
| 12 | Cruise control message center indicator |
| 13 | Electric park, brake indicator |
| 14 | Brake warning, warning indicator |
| 15 | RH turn indicator |
| 16 | Lane departure warning/door ajar display |
| 17 | Speedometer |
| 18 | Fuel gauge |
| 19 | Lights on indicator |
| 20 | High beam indicator |
| 21 | Odometer display area |
| 22 | Main message center display area |
| 23 | PRNDL display |
| 24 | Message center indicator display area |
| 25 | SelectShift® display |
| 26 | Fog lamp indicator |
| 27 | Temperature gauge |
| 28 | Stop/start indicator |
The mid-level IPC provides a single 4.2" color thin film transistor message center display.
