Removal And Installation: Fender: Removal
NOTE:

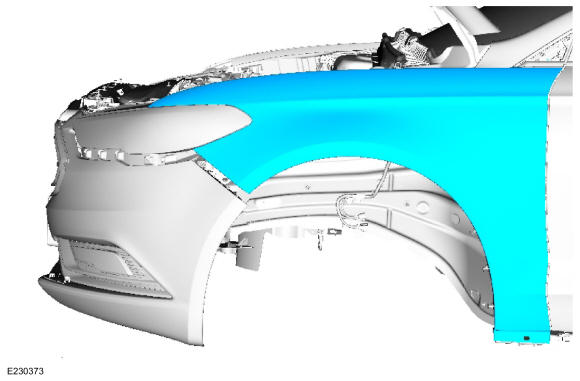

LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the fender splash shield. Refer to: Fender Splash Shield .

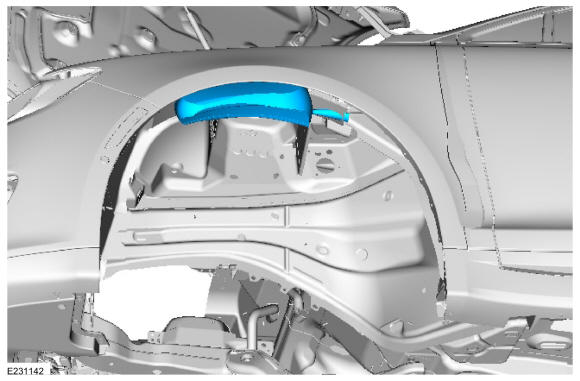

- Remove the fender insulation.

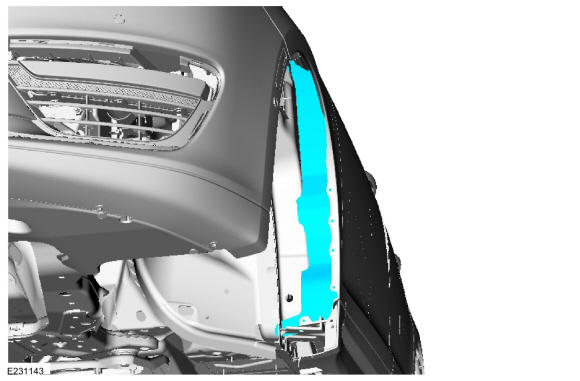

- Remove the fender baffle.
- Remove the rocker panel moulding. Refer to: Rocker Panel Moulding .

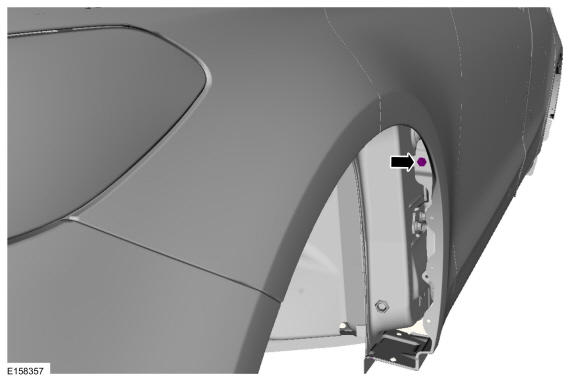

- Remove the bolt.
Torque: 80 lb.in (9 Nm)

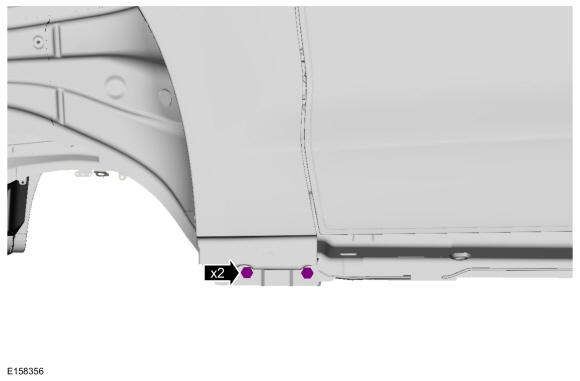

- Remove the bolts.
Torque: 80 lb.in (9 Nm)

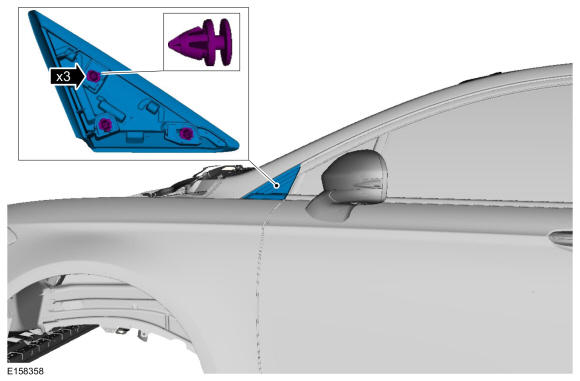

- Release the retainers and remove the door frame moulding.

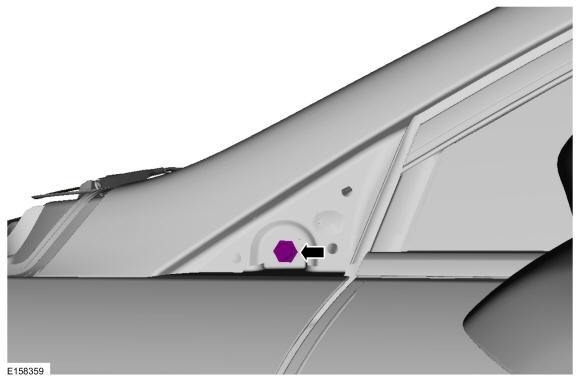

- Remove the bolt.
Torque: 80 lb.in (9 Nm)

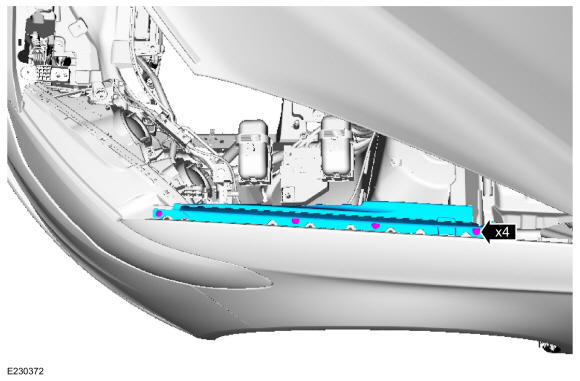

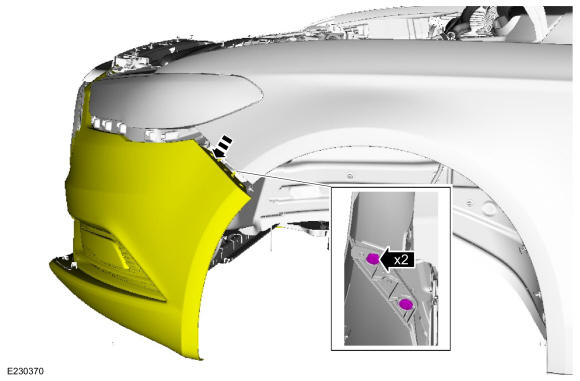

- Remove the fender-to-bumper cover bolts and position the bumper cover down.
Torque: 53 lb.in (6 Nm)

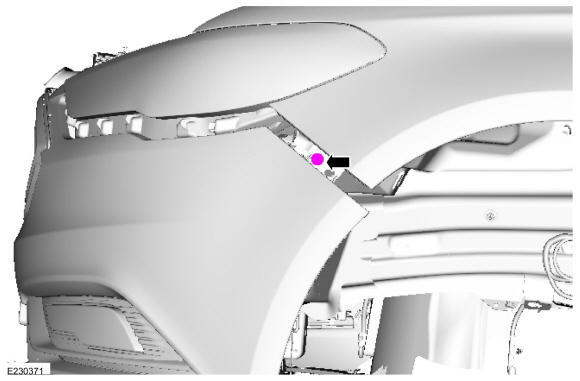

- Remove the front fender bracket bolt.
Torque: 80 lb.in (9 Nm)
- Remove the pin-type retainers and the cowl filler panel.

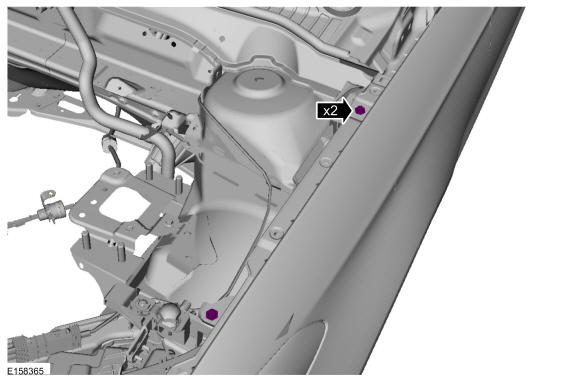

- Remove the bolts.
Torque: 80 lb.in (9 Nm)
- Remove the fender.
