Fender Splash Shield: Removal

NOTE: LH (left-hand) shown, RH (right-hand) similar.
  1. Remove the wheel and tire. Refer to: Wheel And Tire .
  2. Remove the nuts.

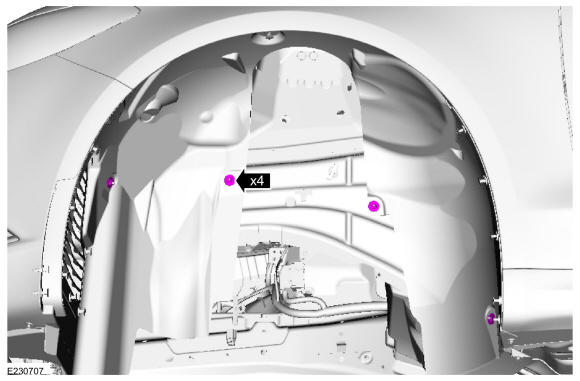

    GFD484779Courtesy of FORD MOTOR COMPANY
  3. Remove the screws.

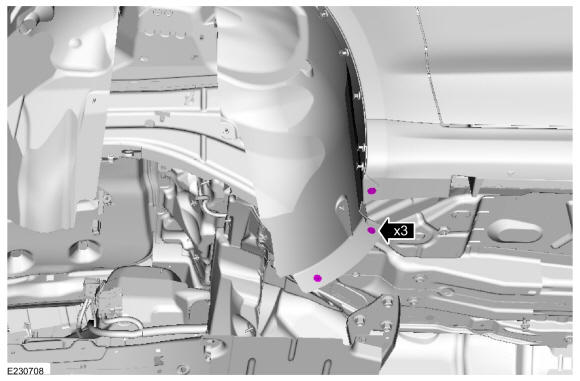

    GFD484780Courtesy of FORD MOTOR COMPANY
  4. Remove the screws.

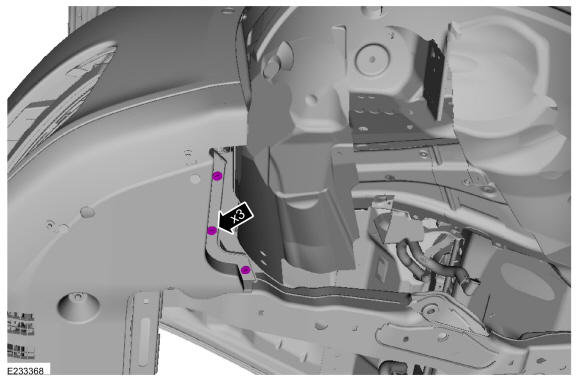

    GFD484781Courtesy of FORD MOTOR COMPANY
  5. Remove the screws.

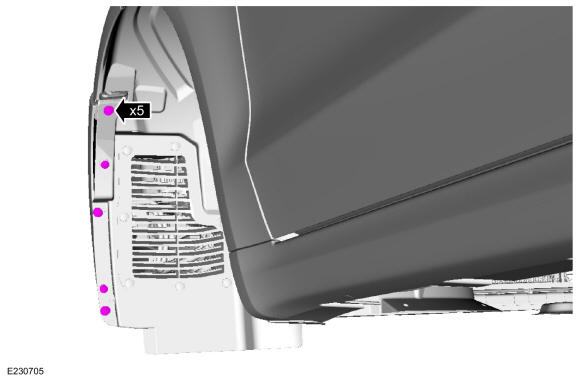

    GFD484782Courtesy of FORD MOTOR COMPANY
  6. Remove the pin-type retainers.

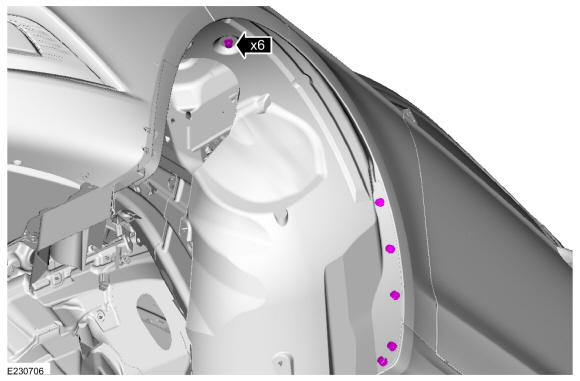

    GFD484783Courtesy of FORD MOTOR COMPANY
  7. Remove the fender splash shield.

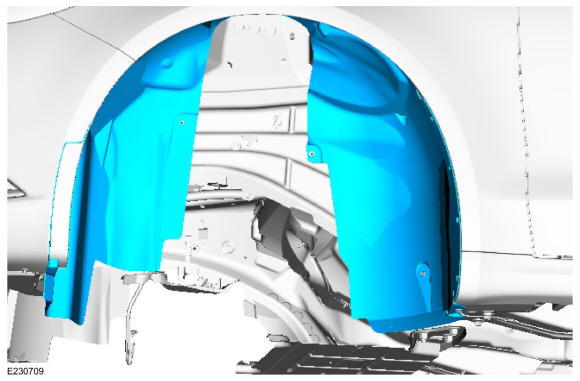

GFD484784Courtesy of FORD MOTOR COMPANY
