Engine Undershield

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

  1. Remove the screws, grommets and the engine front undershield.
    GFD484766Courtesy of FORD MOTOR COMPANY

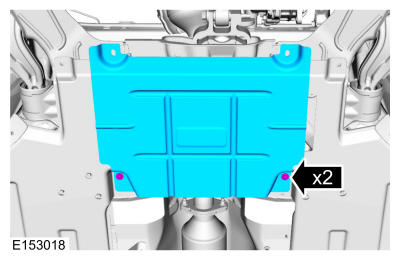

  2. Remove the screws and the engine undershield.
GFD484767Courtesy of FORD MOTOR COMPANY
