Rear Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear wheels and tires. Refer to: Wheel and Tire .

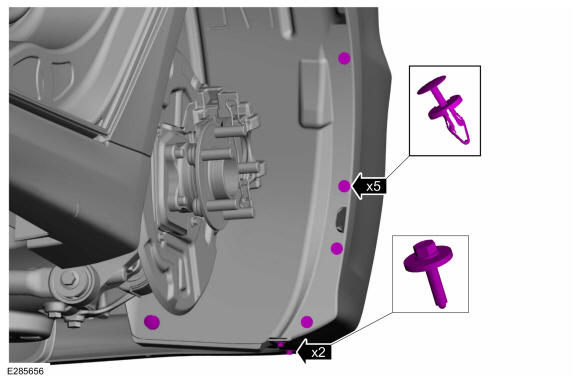

On both sides. Remove the inner wheel liner to rear bumper cover pin-type retainers and the bolts.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

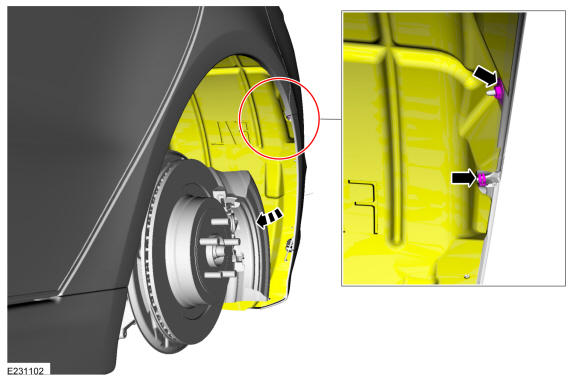

On both sides. Remove the nut and the spring clip and then position the wheel well liner aside.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

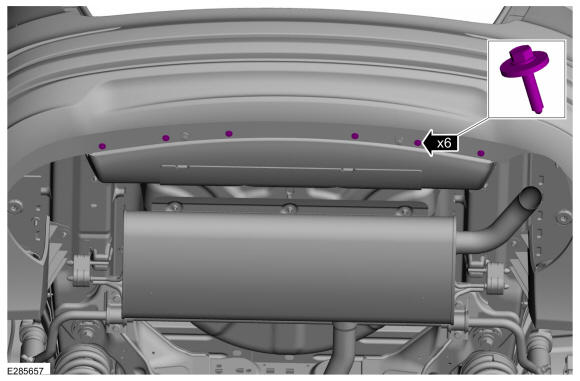

Remove the lower rear bumper cover to the body screws.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear lamp assemblies. Refer to: Rear Lamp Assembly - 4-Door .

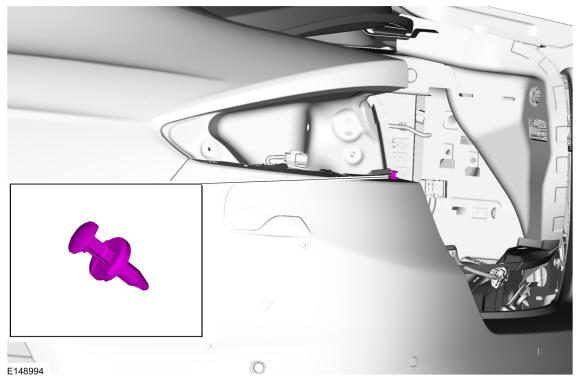

On both sides. Remove the pin-type retainer.

Courtesy of FORD MOTOR COMPANY

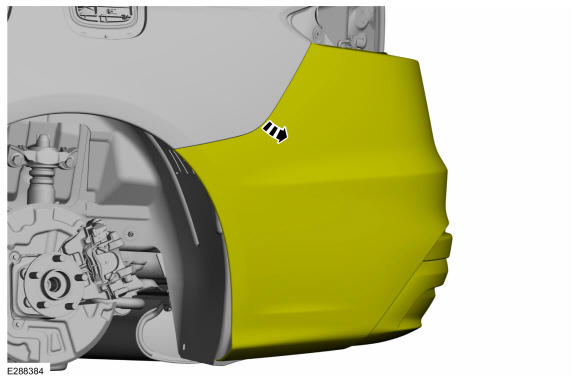

On both sides. Release the rear bumper cover from the rear bumper cover brackets and position the rear bumper cover aside.

Courtesy of FORD MOTOR COMPANY

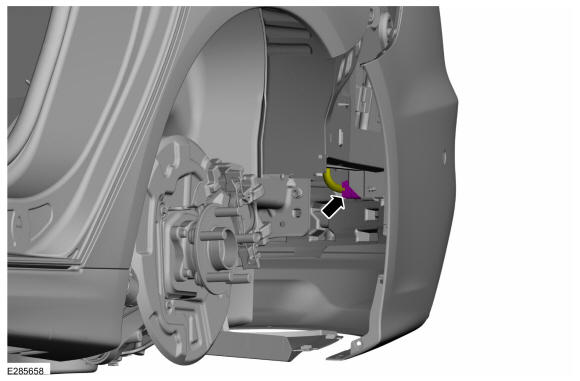

Disconnect the rear bumper harness electrical connector.

Courtesy of FORD MOTOR COMPANY

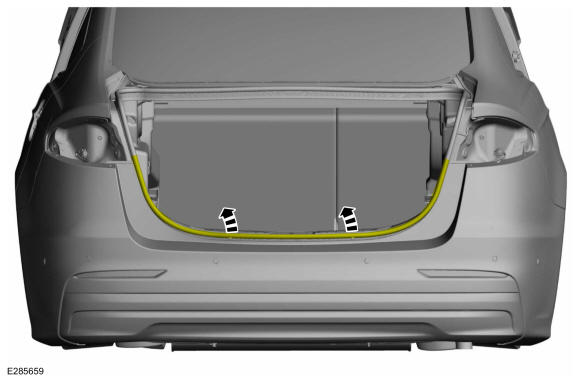

Position the weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

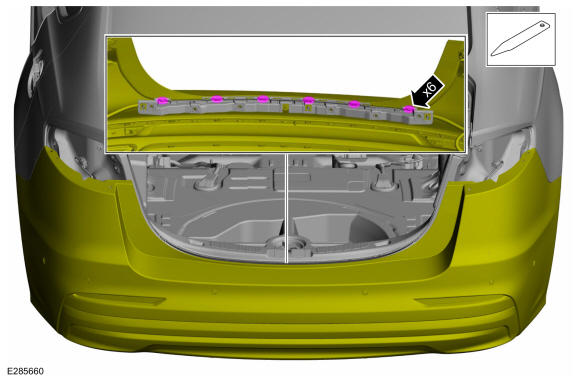

Using a non-marring tool, release the retaining tabs and pull outward to disengage. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

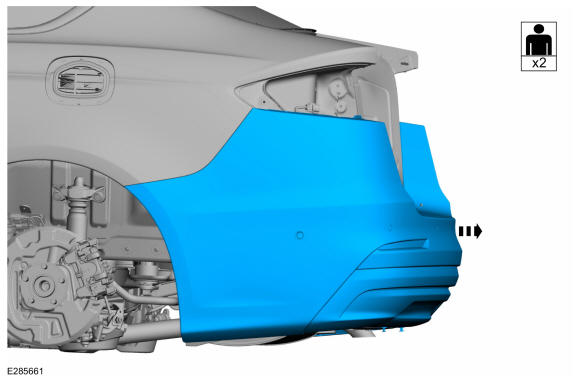

With the help of an assistant. Remove the rear bumper cover.

Courtesy of FORD MOTOR COMPANY

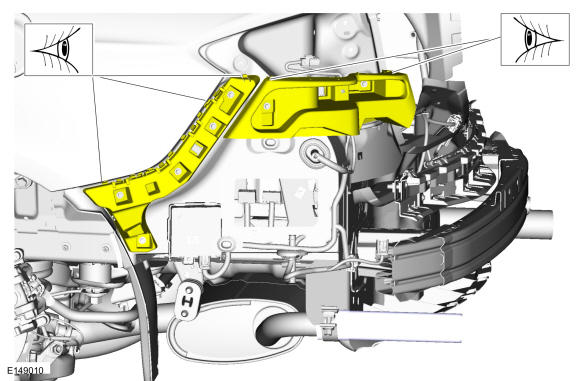

On both sides. Inspect the bumper reinforcements for damage to the bumper cover tabs.

Courtesy of FORD MOTOR COMPANY

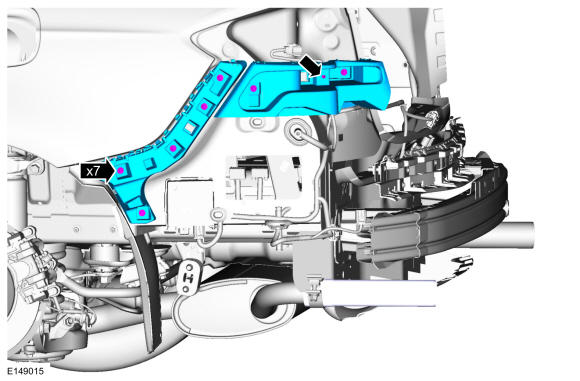

On both sides, if required. Remove the screws, release the tab and the remove the rear bumper cover side brackets.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

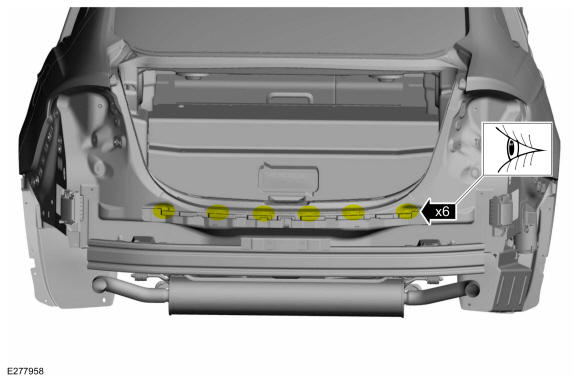

Inspect the bumper reinforcements for damage to the bumper cover gripping surfaces.

Courtesy of FORD MOTOR COMPANY
If required. Remove the screws, the trim pin and the damaged rear bracket.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
