Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front wheels and tires. Refer to: Wheel and Tire .

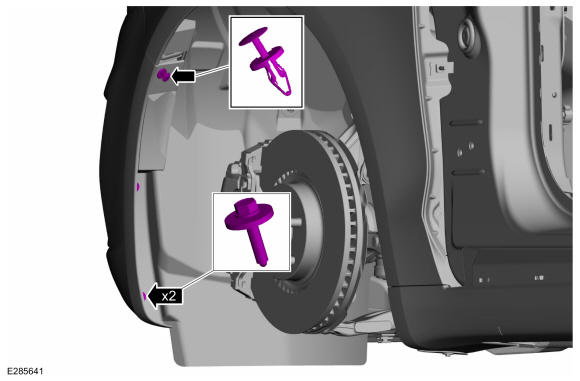

  2. On both sides. Remove the rivet push pin and the screws from the front of the fender liner.
    GFD503727Courtesy of FORD MOTOR COMPANY

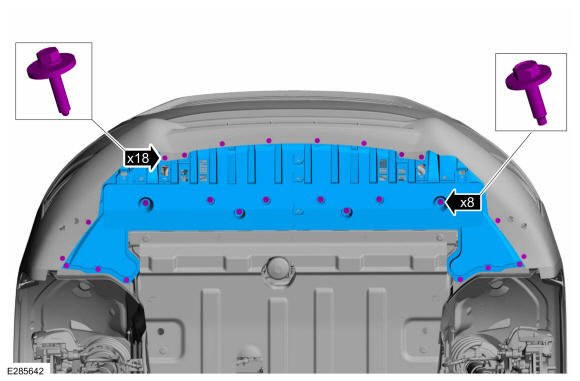

  3. Remove the screws and the lower radiator closeout.
    GFD503728Courtesy of FORD MOTOR COMPANY

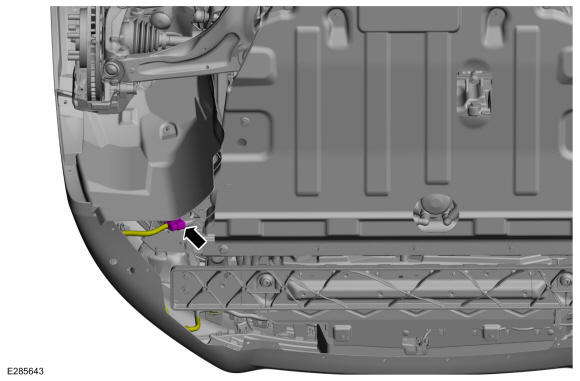

  4. Disconnect the electrical connector.
    GFD503729Courtesy of FORD MOTOR COMPANY

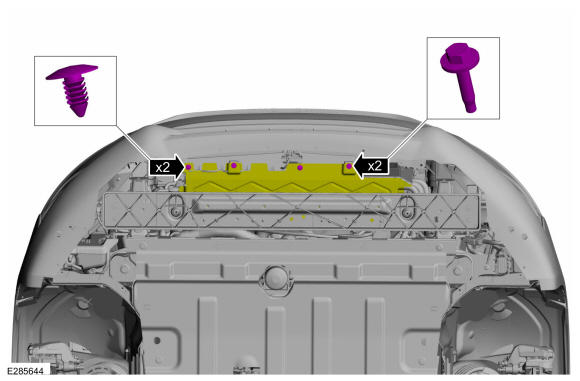

  5. If equipped. Remove the pin-type retainers, the screws and position the air deflector down.
    GFD503730Courtesy of FORD MOTOR COMPANY

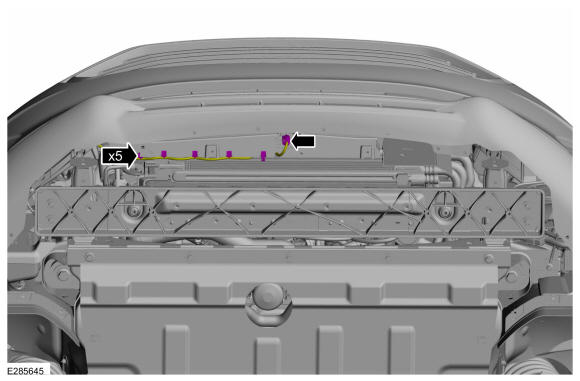

  6. If equipped. Disconnect the electrical connector and release the wiring harness guides.
    GFD503731Courtesy of FORD MOTOR COMPANY

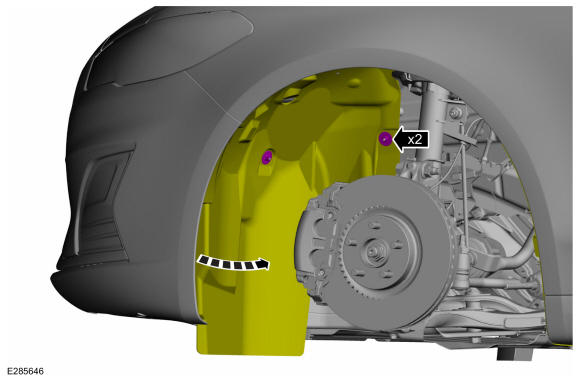

  7. Remove the nuts and position the fender liner aside.
    GFD503732Courtesy of FORD MOTOR COMPANY

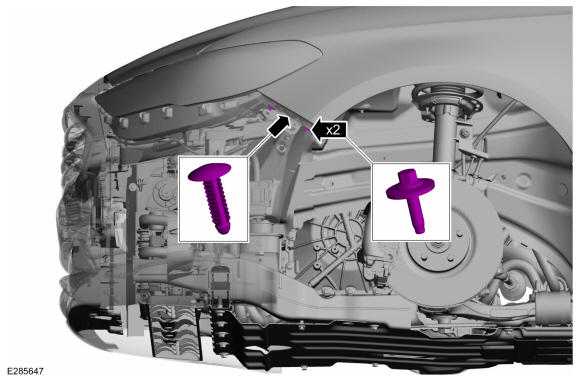

  8. Remove the front bumper cover-to-fender bolts and the push pin.
    GFD503733Courtesy of FORD MOTOR COMPANY

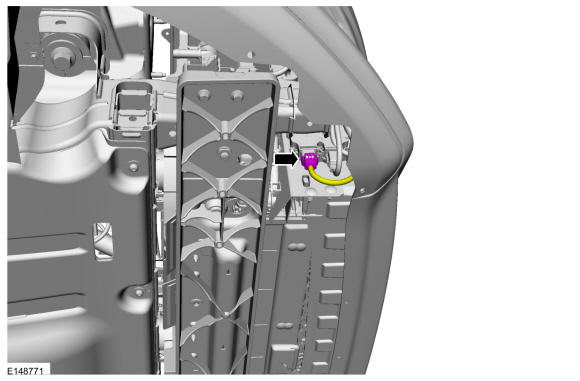

  9. If equipped. Disconnect the electrical connector.
    GFD503734Courtesy of FORD MOTOR COMPANY

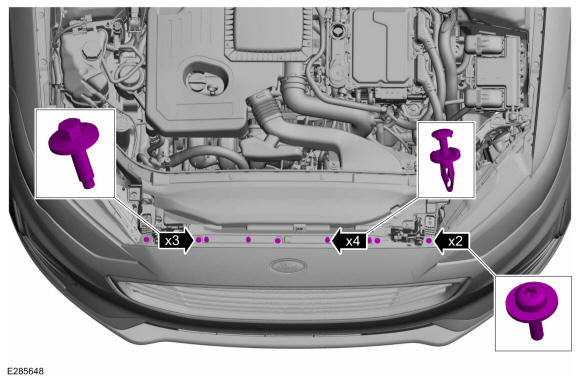

  10. Remove the upper front bumper cover bolts, the screws and the push pins.
    GFD503735Courtesy of FORD MOTOR COMPANY

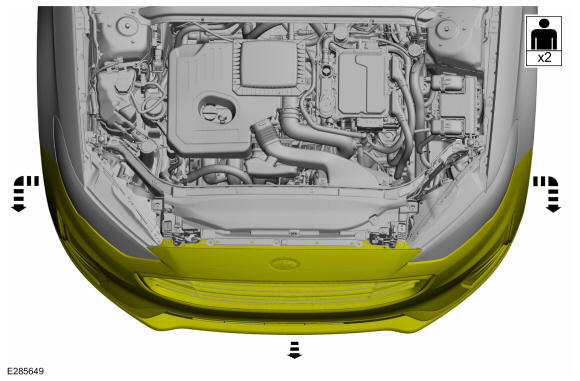

  11. With the help of assistant. Release the sides of the front bumper cover from the brackets and position forward.
    GFD503736Courtesy of FORD MOTOR COMPANY

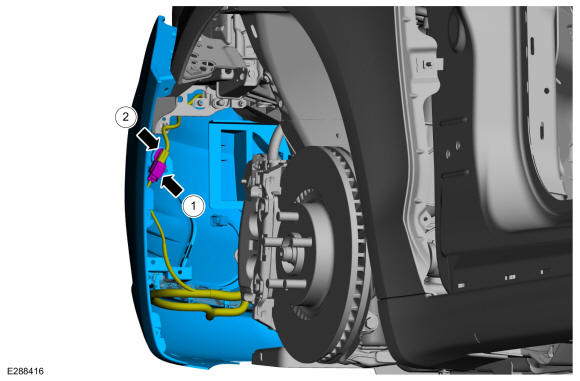

  12. Remove the front bumper cover.

    1. Disconnect the electrical connector.
    2. Detach the wiring harness retainer and remove the front bumper cover.

GFD503737Courtesy of FORD MOTOR COMPANY
