Front Bumper Cover: Disassembly

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. Remove the front fog lamps. Refer to: Front Fog Lamp .
  3. Remove the front parking aid sensors, active park assist sensors and associated wiring. Refer to: Front Parking Aid Sensor . Refer to: Front Active Park Assist Sensors .
  4. Remove the ambient air temperature sensor. Refer to: Ambient Air Temperature Sensor .

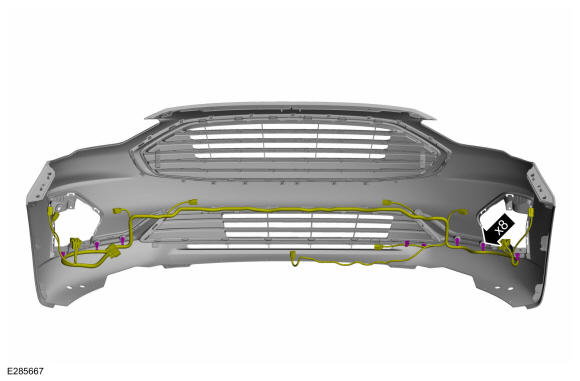

  5. Separate the harness guides and remove the front bumper cover harness.
    GFD503739Courtesy of FORD MOTOR COMPANY

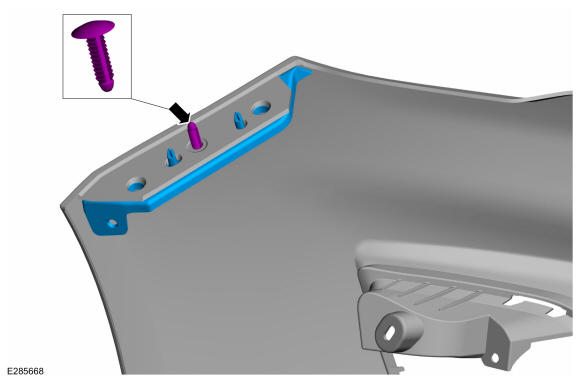

  6. On both sides. Remove the push pin and the front bumper cover-to-fender bracket.
    GFD503740Courtesy of FORD MOTOR COMPANY

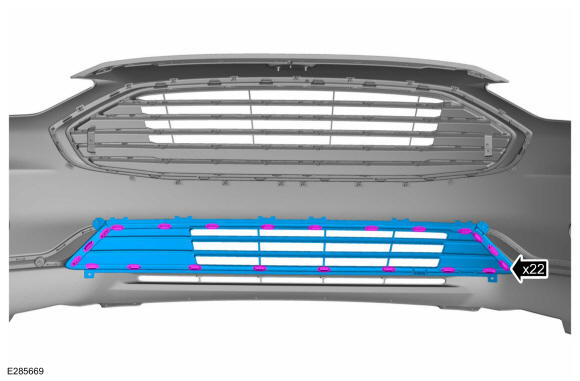

  7. Release the tabs and remove the lower radiator grille.
    GFD503741Courtesy of FORD MOTOR COMPANY

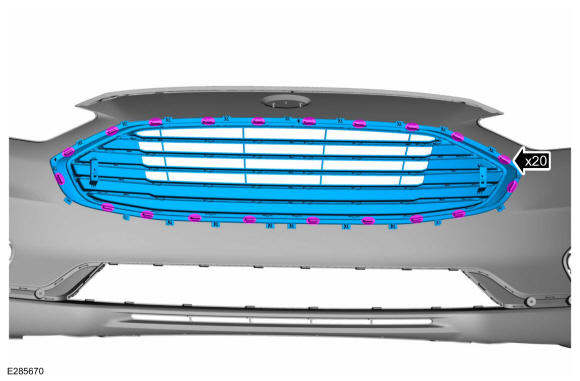

  8. Release the tabs and remove the upper radiator grille.
    GFD503742Courtesy of FORD MOTOR COMPANY

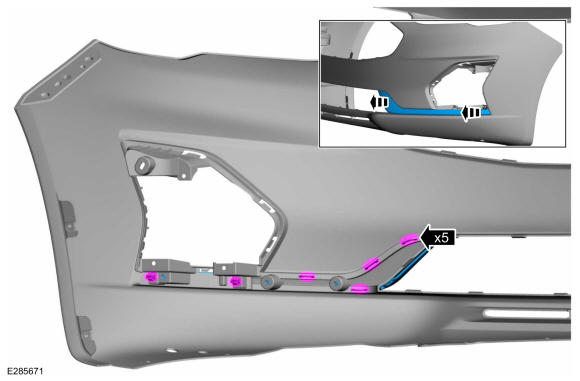

  9. Release the tabs and remove the fog lamp bezels.
    GFD503743Courtesy of FORD MOTOR COMPANY

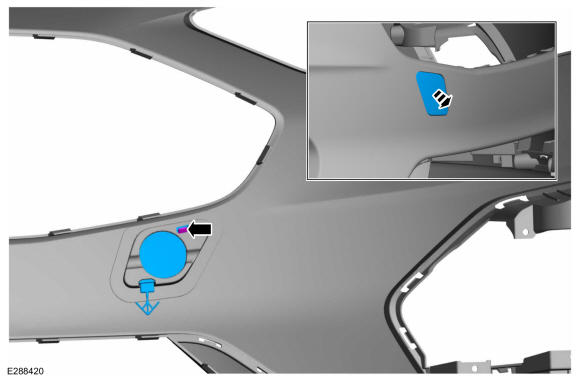

  10. Release the tab and remove the tow hook cover.
    GFD503744Courtesy of FORD MOTOR COMPANY

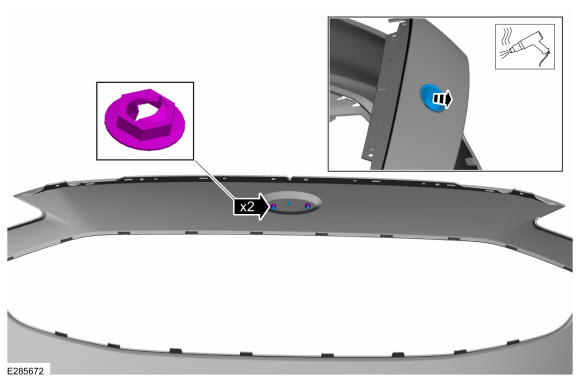

  11. Remove the push nuts and the front bumper cover emblem. Use the General Equipment: Hot Air Gun
GFD503745Courtesy of FORD MOTOR COMPANY
