Front Seat: Removal

NOTE: Driver seat shown, passenger seat similar.
  1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    Turn the ignition OFF and wait at least one minute.

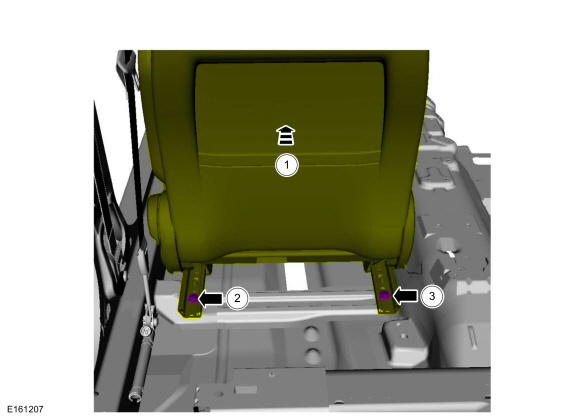

    1. Position the seat frontward to access the seat rear bolts.
    2. Remove the seat bolt.
    3. Remove the seat bolt.
    GFD503340Courtesy of FORD MOTOR COMPANY

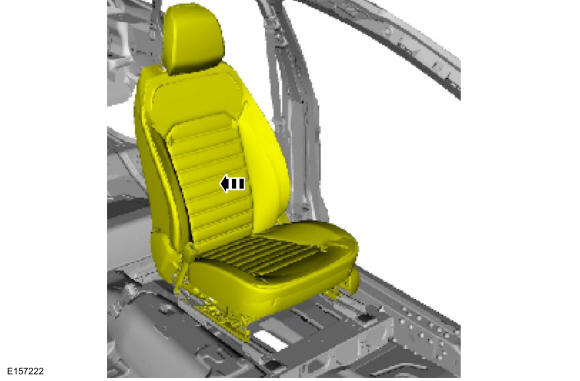

  3. Move the front seat to the full rearward position.
    GFD503341Courtesy of FORD MOTOR COMPANY
  4. If a seat side airbag SRS fault is present, depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
  5. Remove the front seat bolt caps.
    GFD503342Courtesy of FORD MOTOR COMPANY

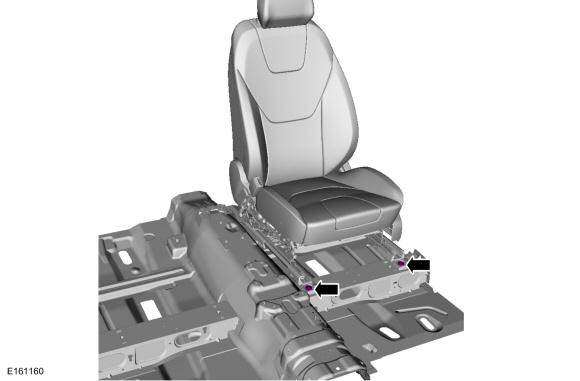

  6. Remove the front seat bolts.
    GFD503343Courtesy of FORD MOTOR COMPANY

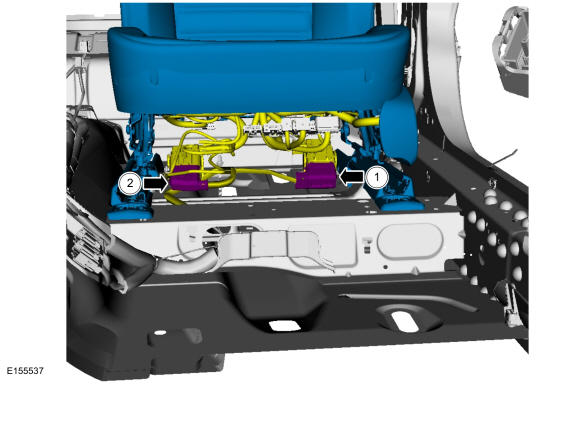

  7. Remove the front seat.

    1. Disconnect the wiring harness electrical connector.
    2. If equipped. Disconnect the heated seat electrical connector.

GFD503344Courtesy of FORD MOTOR COMPANY
