Front Seat Track: Removal

NOTE: Note the wire harness routing for installation purposes.
  1. Remove the front seat backrest. Refer to: Front Seat Backrest .
  2. Remove the front seat cushion cover. Refer to: Front Seat Cushion Cover .

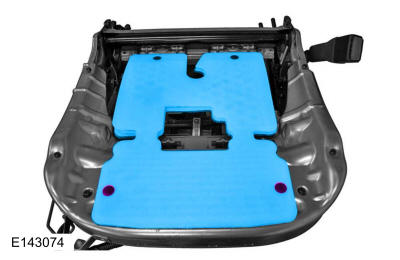

  3. NOTE: Passenger seat only.

    Detach the front pin-type retainers, lift the bladder and feed the OCS hose and sensor out from between the front seat cushion support wires.

    GFD503429Courtesy of FORD MOTOR COMPANY

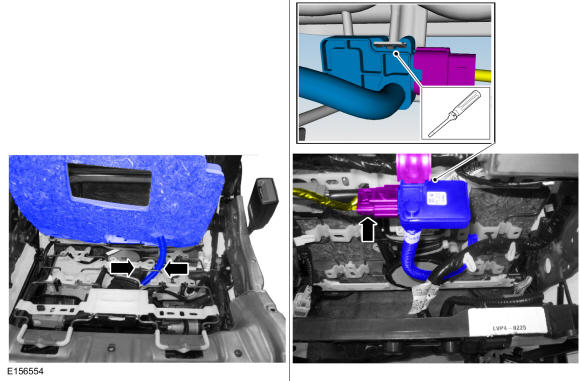

  4. NOTE: Passenger seat only.

    • Disconnect the OCS sensor electrical connector, release the tab and remove the OCS sensor.

    • Route the OCS sensor and hose through the front seat cushion suspension wires.

GFD503430Courtesy of FORD MOTOR COMPANY
