Front Seat Control Switch: Removal

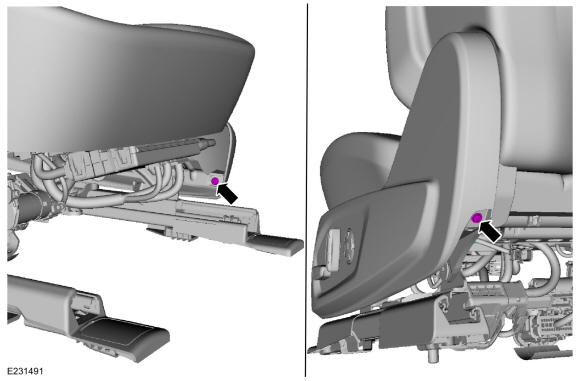

  1. Remove the side shield screws.
    GFD503378Courtesy of FORD MOTOR COMPANY

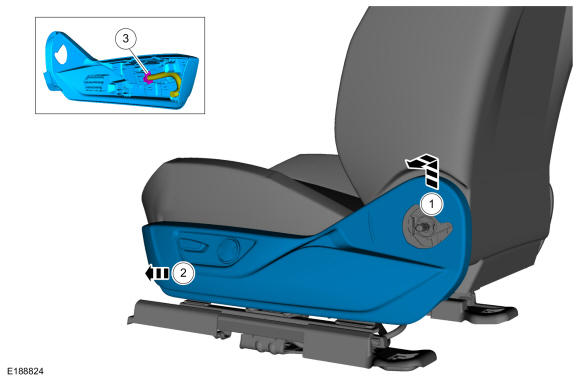

  2. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD503379Courtesy of FORD MOTOR COMPANY

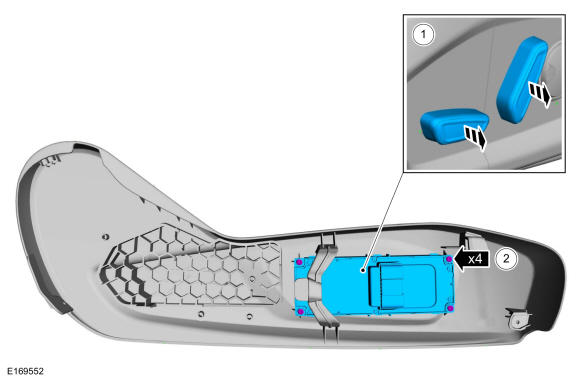

    1. Remove the seat control switch knobs.
    2. Remove the screws and the seat control switch.
GFD503380Courtesy of FORD MOTOR COMPANY
