Front Head Restraint Guide Sleeve: Removal

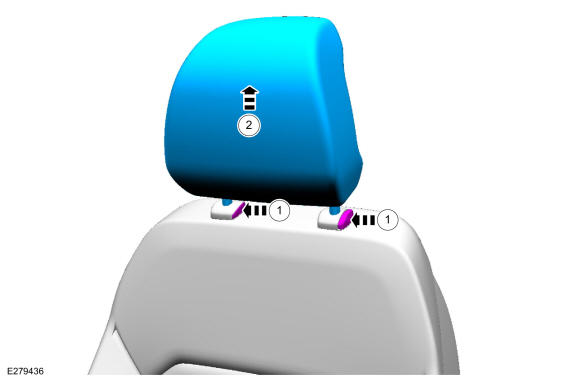

Vehicles without police seats

1. 1. Depress the locking tabs.
   2. Remove the front head restraint.

   Courtesy of FORD MOTOR COMPANY

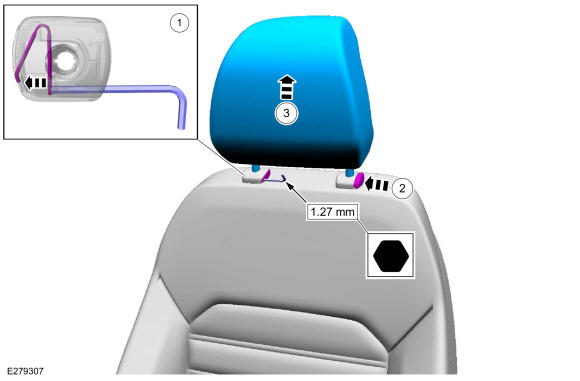

   Vehicles with police seats

2. 1. Insert a 1.27 mm (0.050 inch) hex key and release the head restraint guide sleeve internal locking spring.
   2. Depress the locking tab.
   3. Remove the front head restraint.

   Courtesy of FORD MOTOR COMPANY

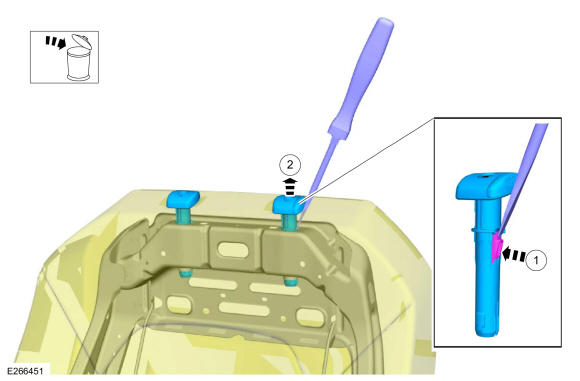

   All seats

3. 1. Release the tab. Use the General Equipment: Flat Headed Screw Driver
   2. Remove and discard the front head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
