Driver Front Seat Module (DSM): Removal

All vehicles

1. NOTE: This step is only necessary when installing a new component.
   NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

   Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

   Vehicles with climate controlled seats

2. NOTE: This step is only necessary when installing a new DSM.
   NOTE: The SCME is integral to the DSM. PMI is required on both the DSM and the SCME when a new DSM is installed.
   NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

   Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

   All vehicles

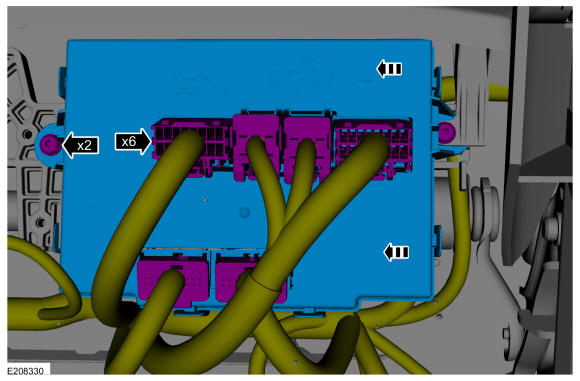

3. Remove the screws, disconnect the electrical connectors and remove the DSM.

   Torque: 19 lb.in (2.1 Nm)

Courtesy of FORD MOTOR COMPANY
