Front Seat Control Switch: Removal

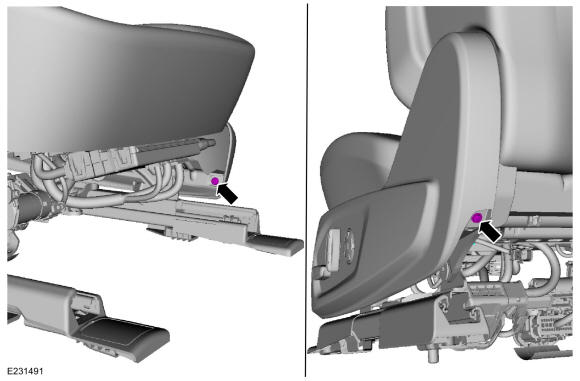

  1. Remove the side shield screws.
    GFD485016Courtesy of FORD MOTOR COMPANY

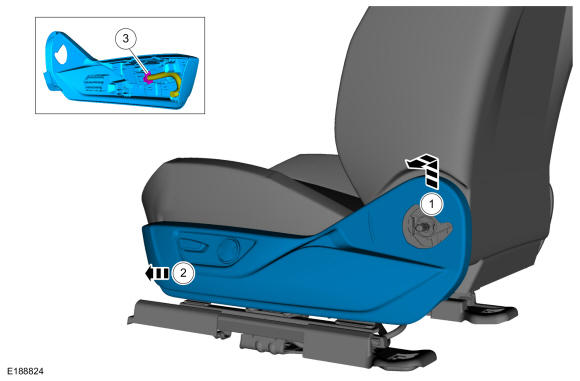

  2. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD485017Courtesy of FORD MOTOR COMPANY

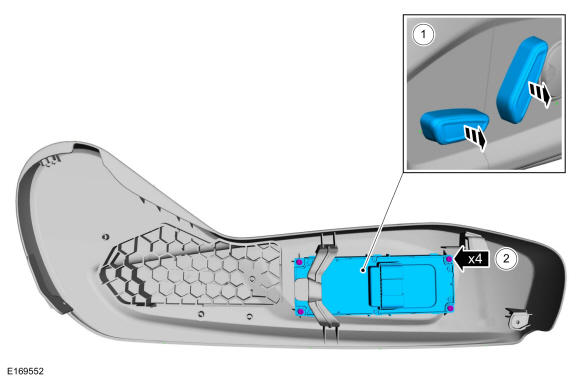

    1. Remove the seat control switch knobs.
    2. Remove the screws and the seat control switch.
GFD485034Courtesy of FORD MOTOR COMPANY
