Front Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat. Refer to: Front Seat .
- If equipped. Release the lumbar knob retaining clip and remove the lumbar knob.
- If equipped. Release the height adjust handle locking tab and remove the height adjust handle.
- If equipped. Release the recline handle retaining clip and remove the recline handle.
Courtesy of FORD MOTOR COMPANY

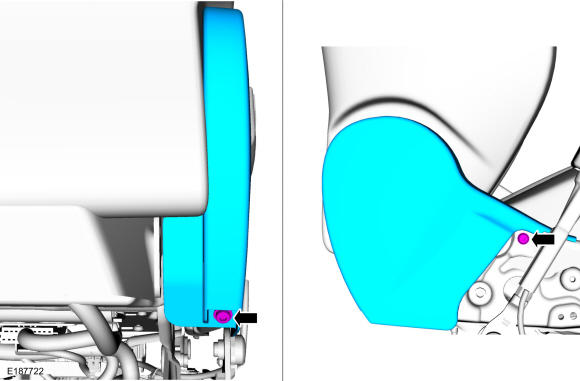

Remove the side shield screws.

Courtesy of FORD MOTOR COMPANY
Remove the side shield.
1. Lift up on the rear of the side shield and pull outward.
2. Push the side shield forward.
3. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

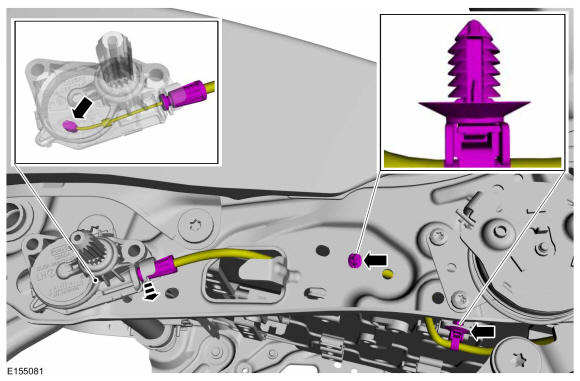

If equipped. Position the manual lumbar assembly cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.
Courtesy of FORD MOTOR COMPANY
Remove the screws and the recline cover.

Courtesy of FORD MOTOR COMPANY

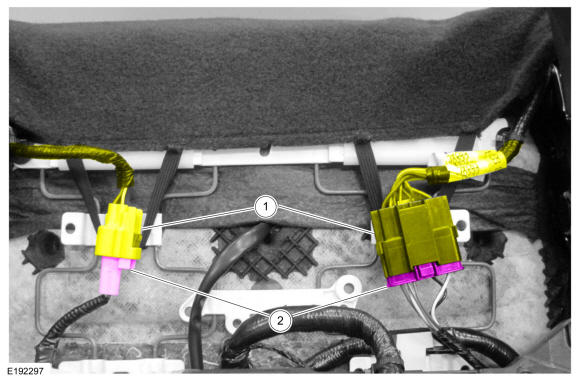

Position the backrest wire harness (es) aside.
1. Release the electrical connector retainer (s) from the seat track.
2. Release the locking tab (s) and disconnect the backrest wire harness electrical connector (s).
Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY

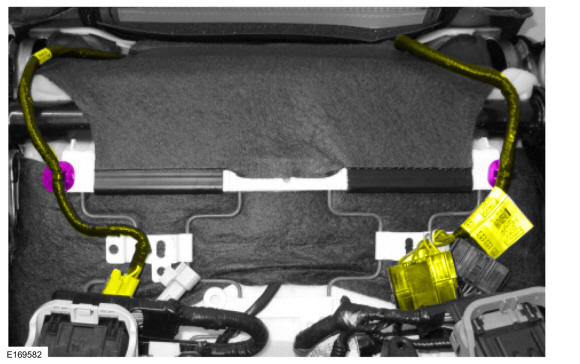

Release the wire harness retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY

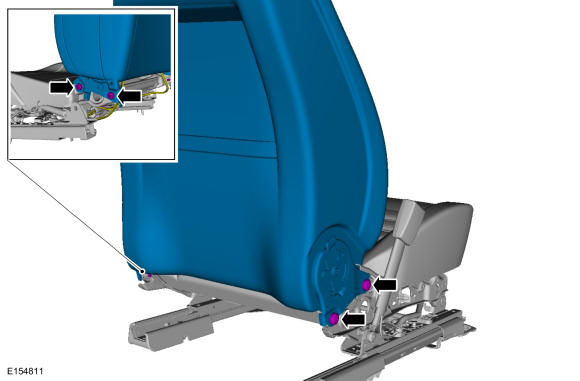

Remove the bolts and the front seat backrest.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
