Information And Entertainment System - General Information - Vehicles With: Sync (1 Of 2) (Hybrid)
>>
Description And Operation
>>

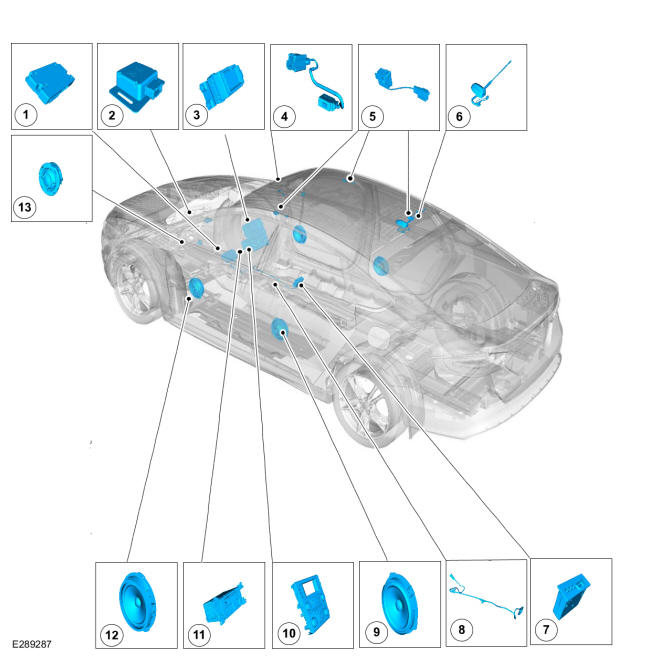

Information And Entertainment System - Component Location
Information And Entertainment System - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
APIM
2
GPSM
3
FCDIM
4
SYNC® microphone
5
Active noise control microphones - HEV
6
AM/ FM Antenna
7
USB port
8
USB cable
9
Speaker - rear door
10
FCIM
11
ACM
12
Speaker - front door
13
Speaker - front door tweeter
