Wheel Bearing and Wheel Hub - FWD: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
All vehicles
- Remove the brake disc. Refer to: Brake Disc
.

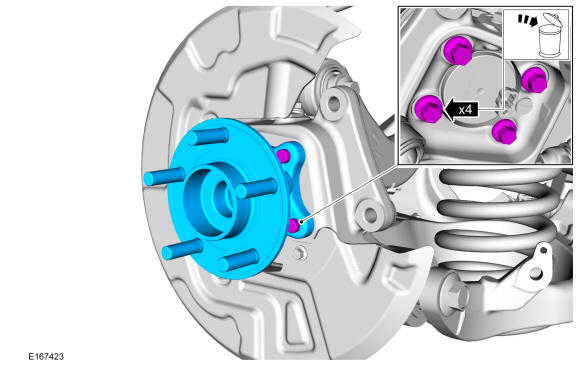

Vehicles with knuckle mounted wheel speed sensor
- Remove and discard the wheel bearing and wheel hub retainers and remove the wheel bearing and wheel hub.

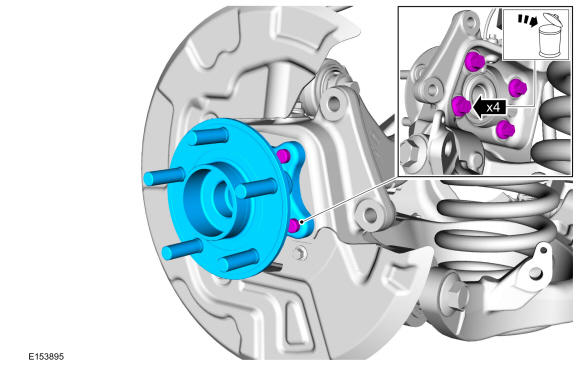

Vehicles with bearing mounted wheel speed sensor
- Remove the wheel speed sensor screw and position the wheel speed sensor aside.
- Remove and discard the wheel bearing and wheel hub retainers and remove the wheel bearing and wheel hub.
