Wheel Bearing and Wheel Hub - FWD: Installation
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

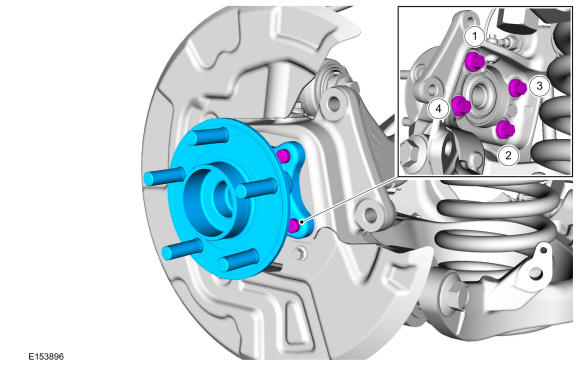

Vehicles with bearing mounted wheel speed sensor
- Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque:
98 lb.ft (133 Nm)

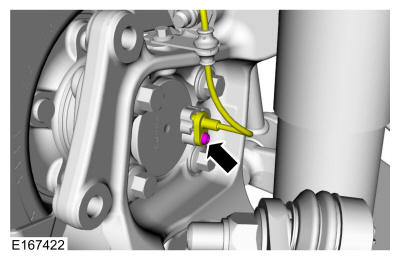

- Position the wheel speed sensor and install the wheel speed sensor screw.
Torque:
48 lb.in (5.4 Nm)

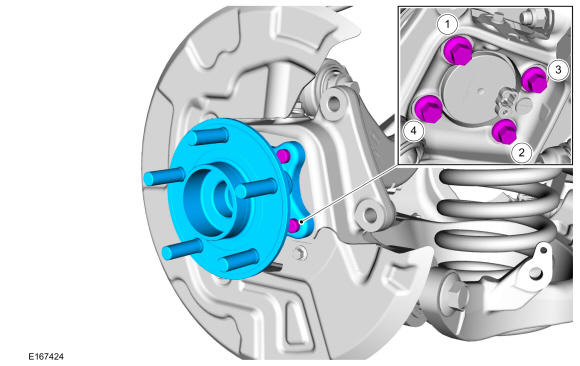

Vehicles with knuckle mounted wheel speed sensor
- Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque:
98 lb.ft (133 Nm)
All vehicles
- Install the brake disc. Refer to: Brake Disc .
