Toe Link: Installation

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

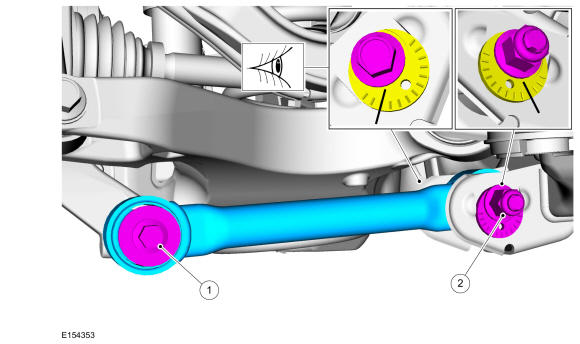

Align reference marks made during removal.
1. Install the toe link-to-wheel knuckle bolt.
  Torque:

  76 lb.ft (103 Nm)
2. Install the toe link-to-subframe cam bolt and nut.
  Torque:

  129 lb.ft (175 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Check and if necessary adjust rear toe. Refer to: Rear Toe Adjustment .
