Removal And Installation: Spring: Installation
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

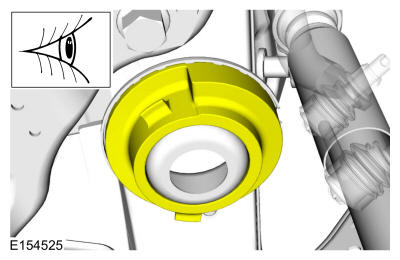

- Visual check. Check the upper spring seat for damage. Replace as necessary.

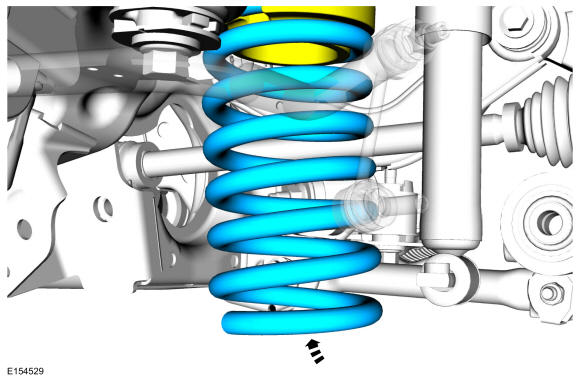

- Install the spring.
-
NOTE: Make sure that the spring is correctly located in the upper spring seat.

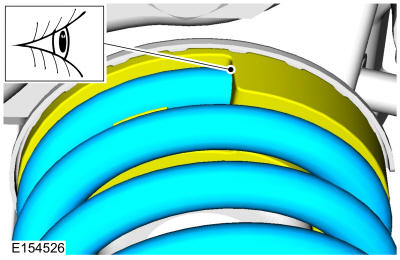

Visual check. Align the spring in the upper spring seat.
- Install the lower arm. Refer to: Lower Arm .
