Rear Stabilizer Bar Link: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.NOTE: Make sure that the ball joint ball does not rotate.

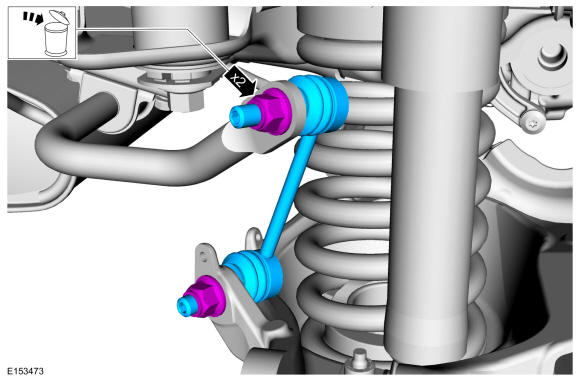

- Remove and discard the rear stabilizer link nuts and remove the rear stabilizer link.
Torque:
85 lb.ft (115 Nm)
- Remove and discard the rear stabilizer link nuts and remove the rear stabilizer link.
