Rear Camber Adjustment
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
| Wheel Alignment System |
|---|
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Using alignment equipment and the manufacturer's instructions, measure the rear camber. Use the General Equipment: Wheel Alignment System

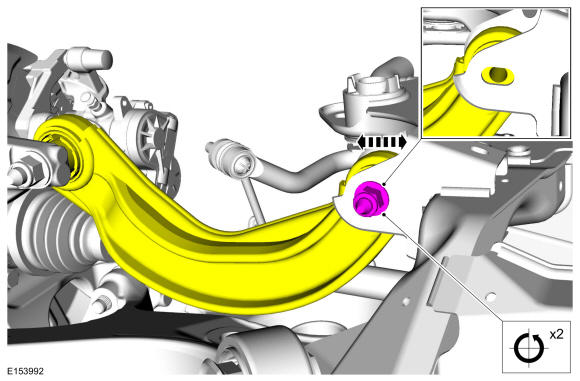

- Turn the component Counterclockwise (CCW) through 2 complete turns.
- Recheck alignment to verify camber change and adjust rear toe if necessary. Refer to: Rear Toe Adjustment .
