Parking, Rear and License Lamps

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

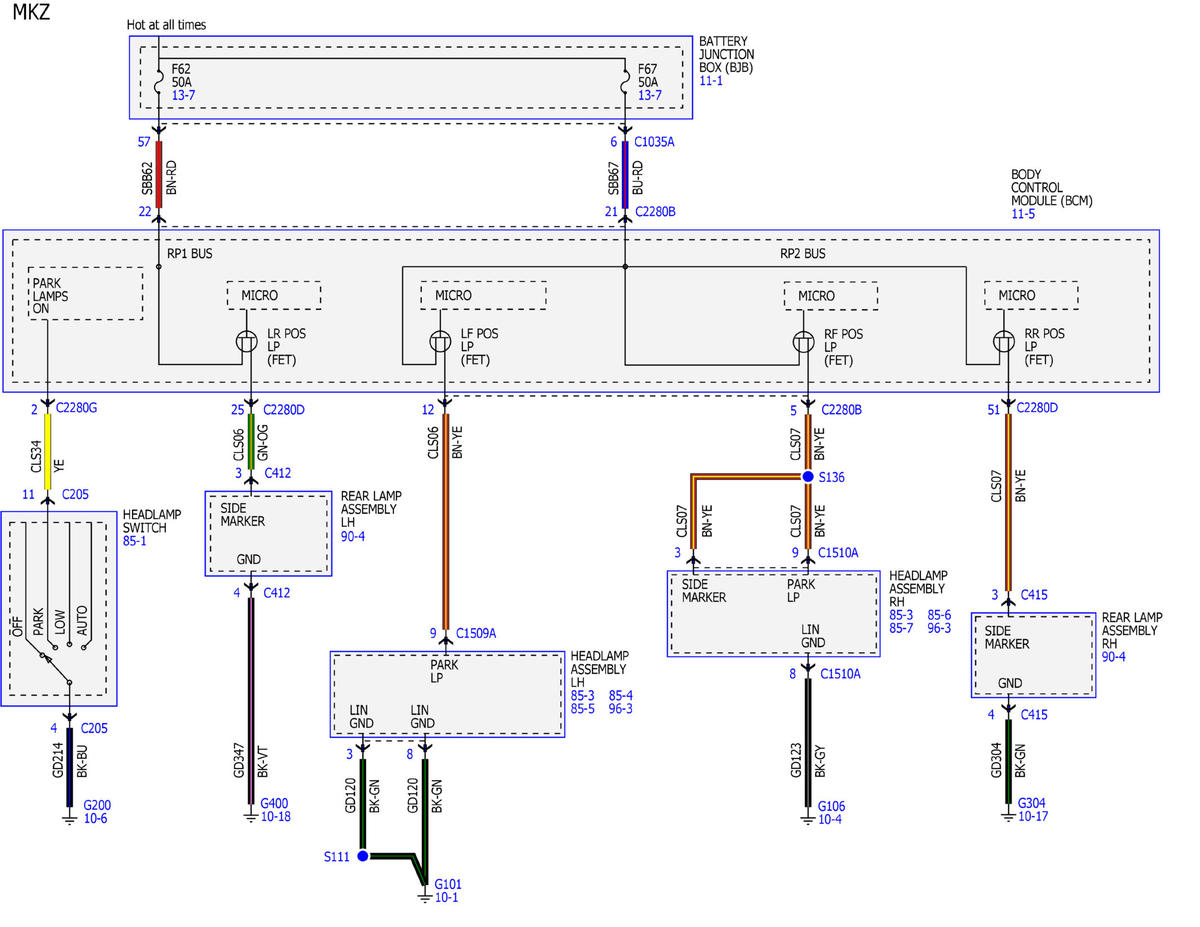

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 Of 4)
GFDWR72879Courtesy of FORD MOTOR COMPANY

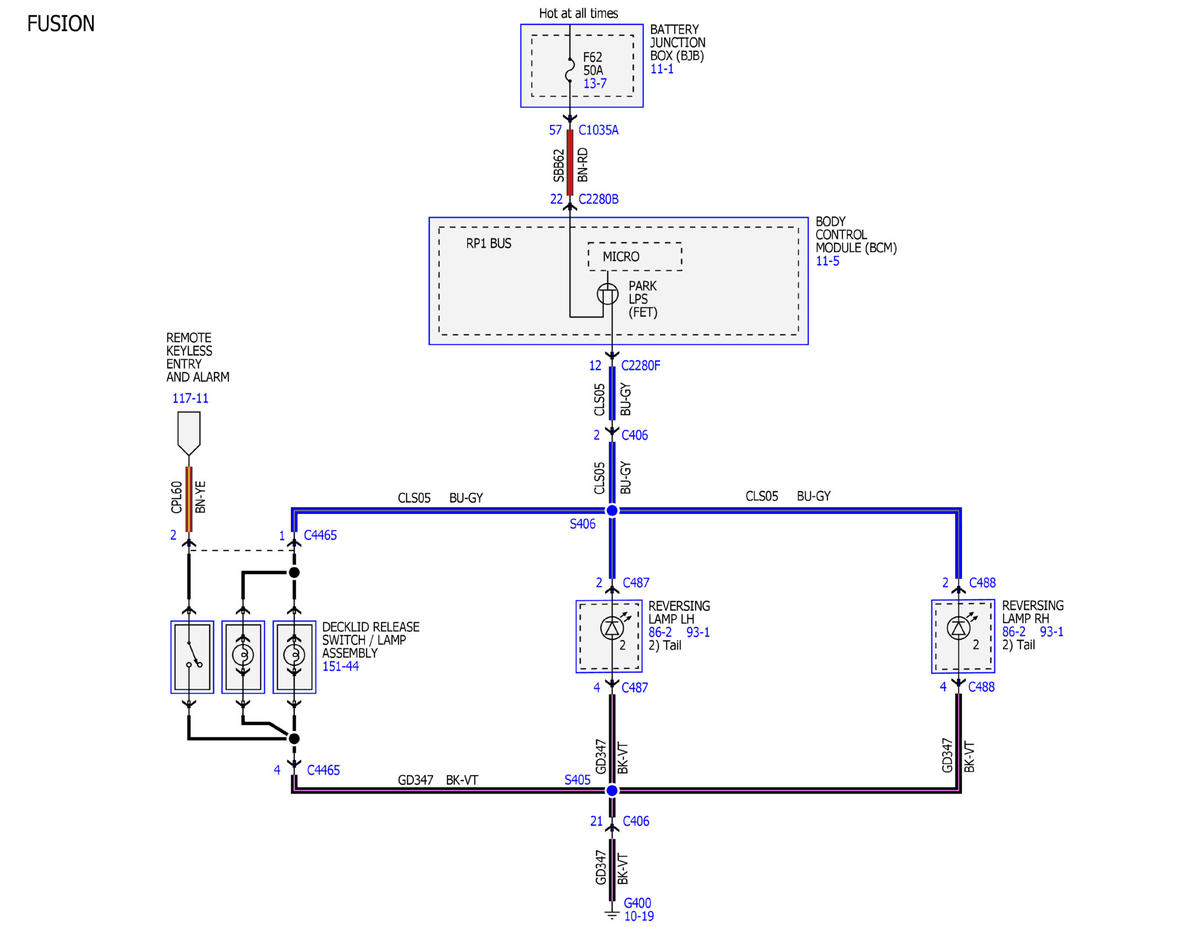

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 Of 4)
GFDWR72880Courtesy of FORD MOTOR COMPANY

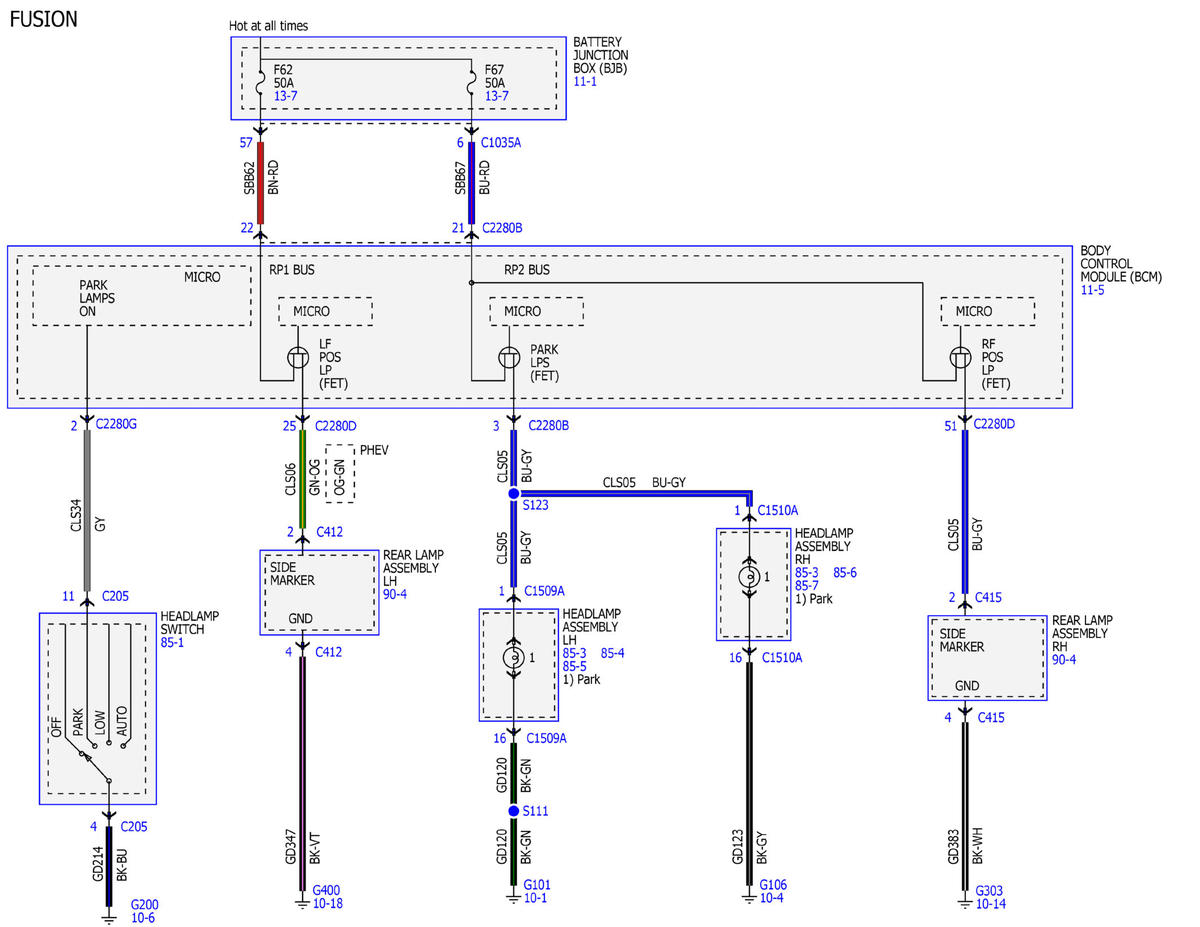

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 Of 4)
GFDWR72881Courtesy of FORD MOTOR COMPANY

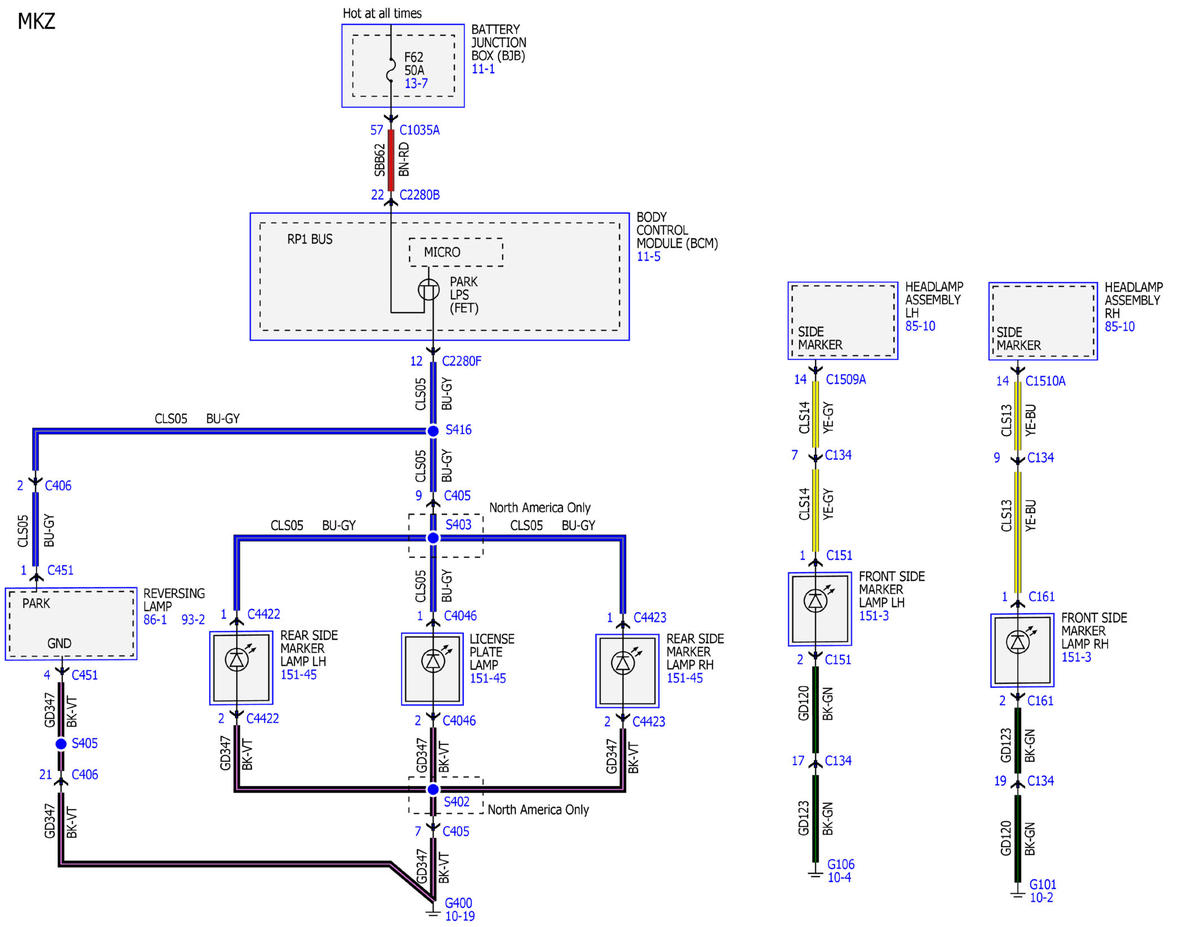

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 Of 4)
GFDWR72882Courtesy of FORD MOTOR COMPANY
