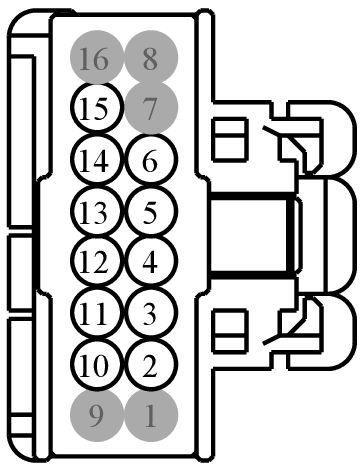

Connector End View (C205) - HEADLAMP SWITCH

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C205	HEADLAMP SWITCH	14401			part# N/A	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-XA	DU2Z-14474-CA	0.64
8U5T-14474-BA	DU2Z-14474-CA	0.64

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CLF57 (BN-WH)	26	SWITCH - FOG LAMPS REAR (USE CLS48 GOING FORWARD)	MKZ	9U5T-14474-XA
3	CLN56 (BN)	26	DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN	9U5T-14474-XA
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	8U5T-14474-BA
5	GD216 (BK-VT)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	8U5T-14474-BA
6	CLN55 (WH)	26	DIMMER - IP/SWITCH ILLUMINATION # DIM UP	9U5T-14474-XA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	CLF23 (VT)	26	SWITCH - HEADLAMP OFF	9U5T-14474-XA
11	CLN34 (YE)	26	CTRL MOD. - DOOR WARNING LAMP DRIVER +	9U5T-14474-XA
11	CLS34 (GY)	26	SWITCH - PARK LAMPS	Fusion	9U5T-14474-XA
12	CLF24 (YE-BU)	26	SWITCH - HEADLAMP ON	9U5T-14474-XA
13	CLF19 (VT-WH)	26	SWITCH - AUTOLAMP (1) ON	9U5T-14474-XA
14	CLF21 (GY-BN)	26	SWITCH - FOG LAMPS FRONT	Fusion	9U5T-14474-XA
15	VLN04 (BU-WH)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	MKZ	8U5T-14474-BA
15	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	Fusion	9U5T-14474-XA
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1294

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AJA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Mirror - Rearview
Mirror - Rearview (electrochromatic)
