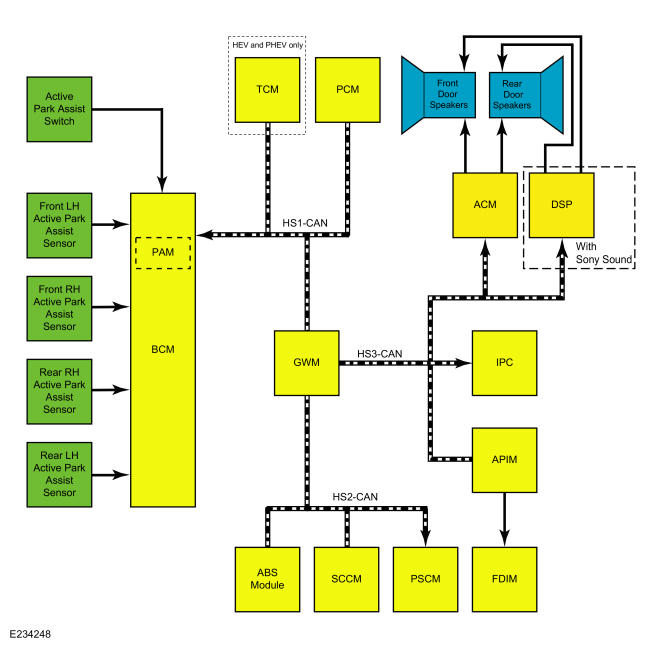

Home >> Ford >> 2020 >> Fusion SEL >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Parking Aid - Vehicles With: Active Park Assist (Except Hybrid) >> Description And Operation >> Parking Aid - System Operation and Component Description >> Active Park Assist >> System Diagram
