Rocker Panel Moulding: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: Before beginning any service procedure in this information, REFER to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

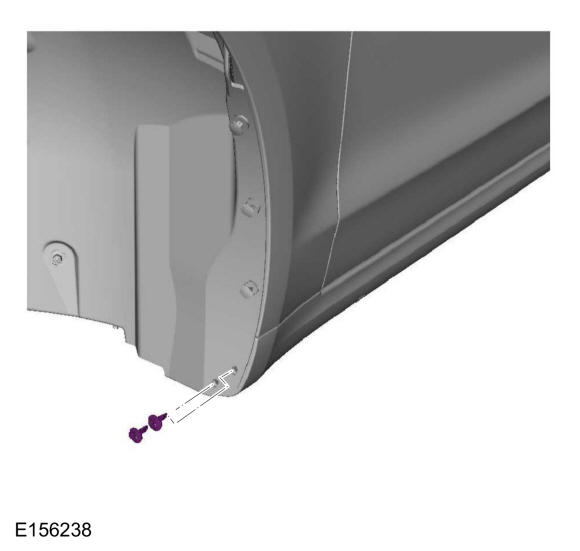

- Remove the retainers.

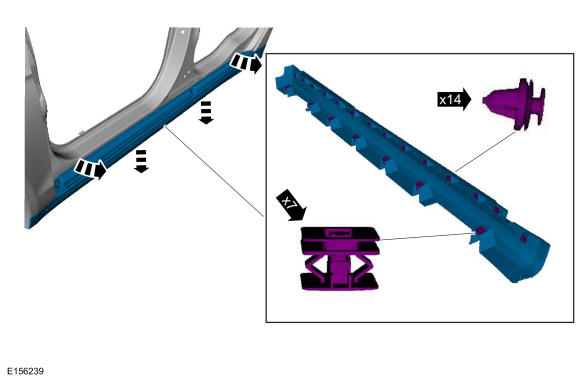

- Remove the rocker panel molding.
- Release the clips along the side of the rocker panel molding.
- Slide rocker panel downward and remove.
