Luggage Compartment Lid Moulding: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
- Position aside the luggage compartment lid pull handle cover.
- Remove the trim cover.
- Remove the screws and the luggage compartment pull handle.

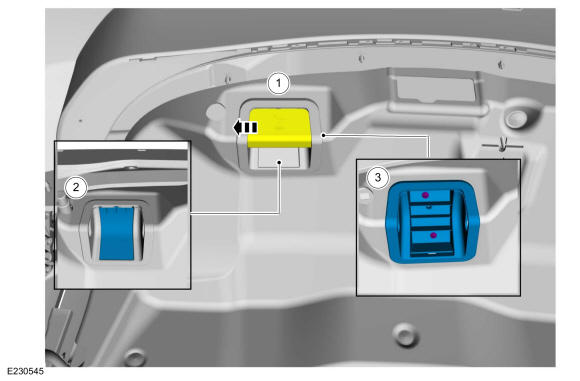

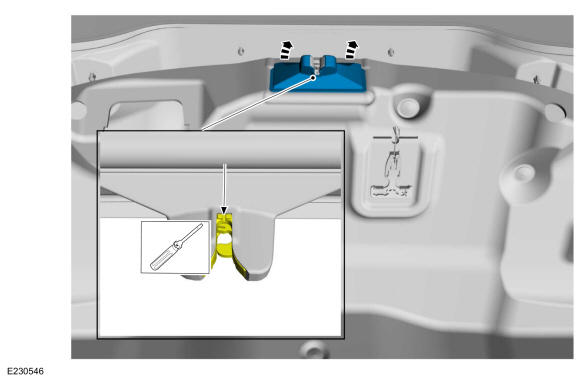

- Insert a flat blade screwdriver in the housing slot and slowly pry down to disengage tabs on the latch. Pull down on the latch trim cover and remove. Use the General Equipment: Flat Headed Screw Driver

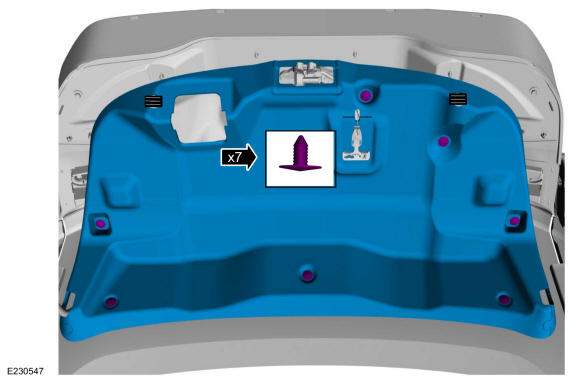

- Remove the pushpins and the trim panel.

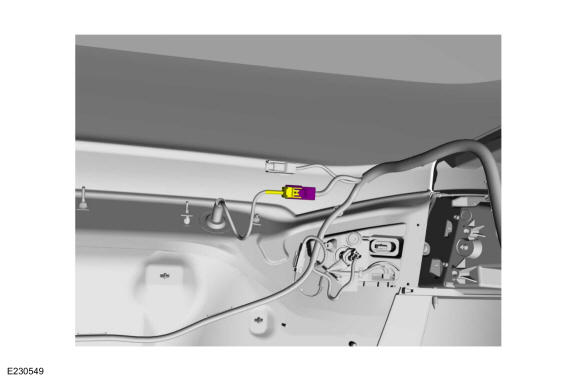

- Disconnect the electrical connector and position aside the wiring harness.

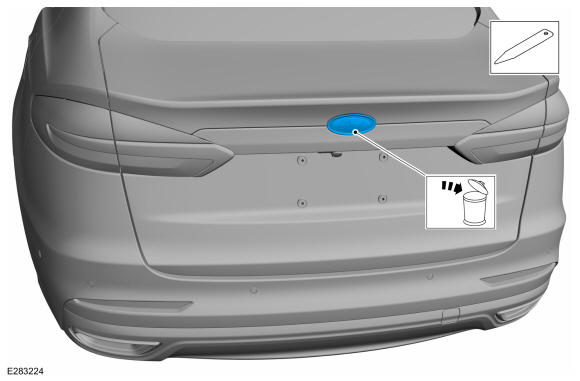

- Remove the emblem and remove any adhesive from the surface. Discard the emblem. Use the General Equipment: Interior Trim Remover
-
NOTE: Inner panel of the luggage compartment lid not shown for clarity.

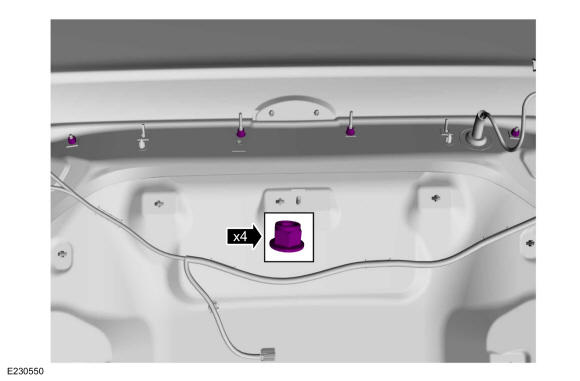

Remove the retainer nuts.
Torque: 44 lb.in (5 Nm)

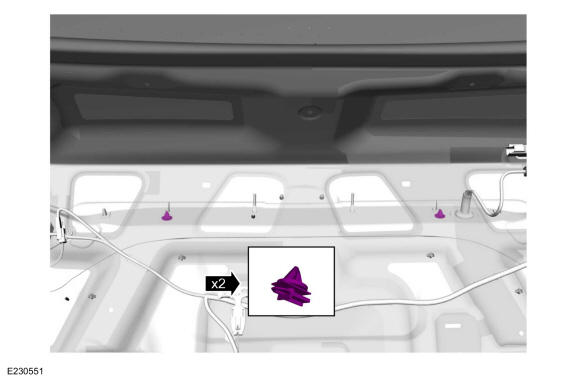

- Release the clips.

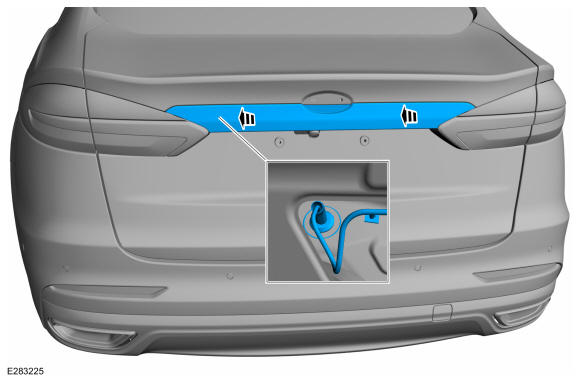

- Remove the upper molding.

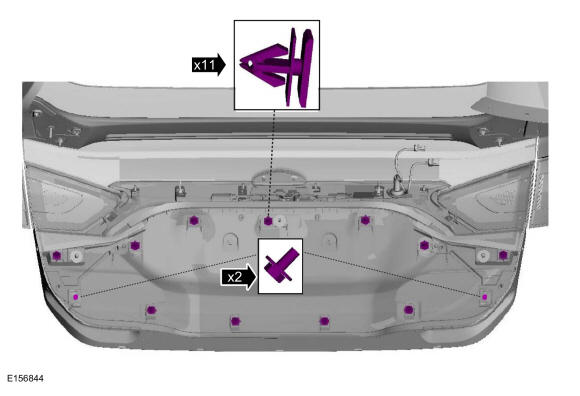

- Remove the bolts and release the clips on the lower molding.
Torque: 18 lb.in (2 Nm)

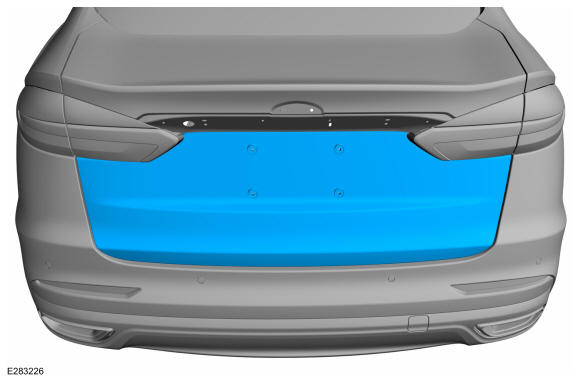

- Remove the luggage compartment lid lower molding.
