Fuel Lines: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (HYBRID/ENERGI) . Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Remove the Fuel Tank. Refer to: Fuel Tank .

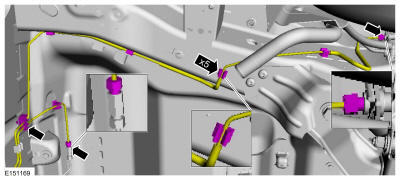

Release the brake line retainers and disconnect the brake lines.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

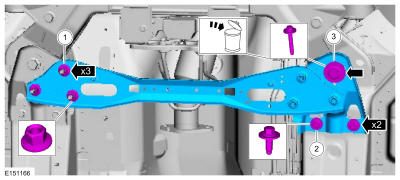

1. Remove the nuts.
  Torque: 33 lb.ft (45 Nm)
2. Remove the bolts.
  Torque: 44 lb.ft (60 Nm)
3. Remove the bolt.
  Torque:Stage 1: 76 lb.ft (103 Nm)Stage 2: 270 deg.
Courtesy of FORD MOTOR COMPANY
Disconnect the brake lines.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

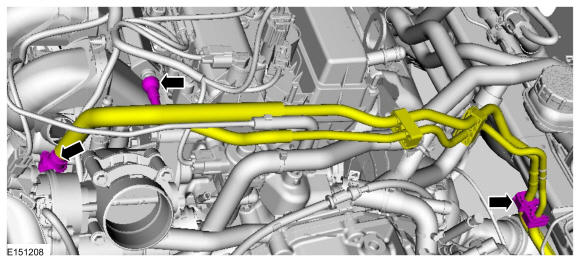

NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.
- Disconnect the fuel line and vapor line. Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings .
- Release the retainer and position the fuel line bundle aside.
Courtesy of FORD MOTOR COMPANY

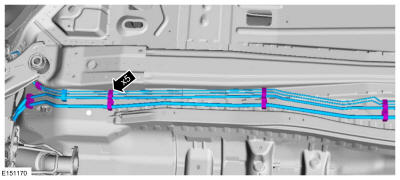

Release the retainers and remove the fuel line bundle.

Courtesy of FORD MOTOR COMPANY
